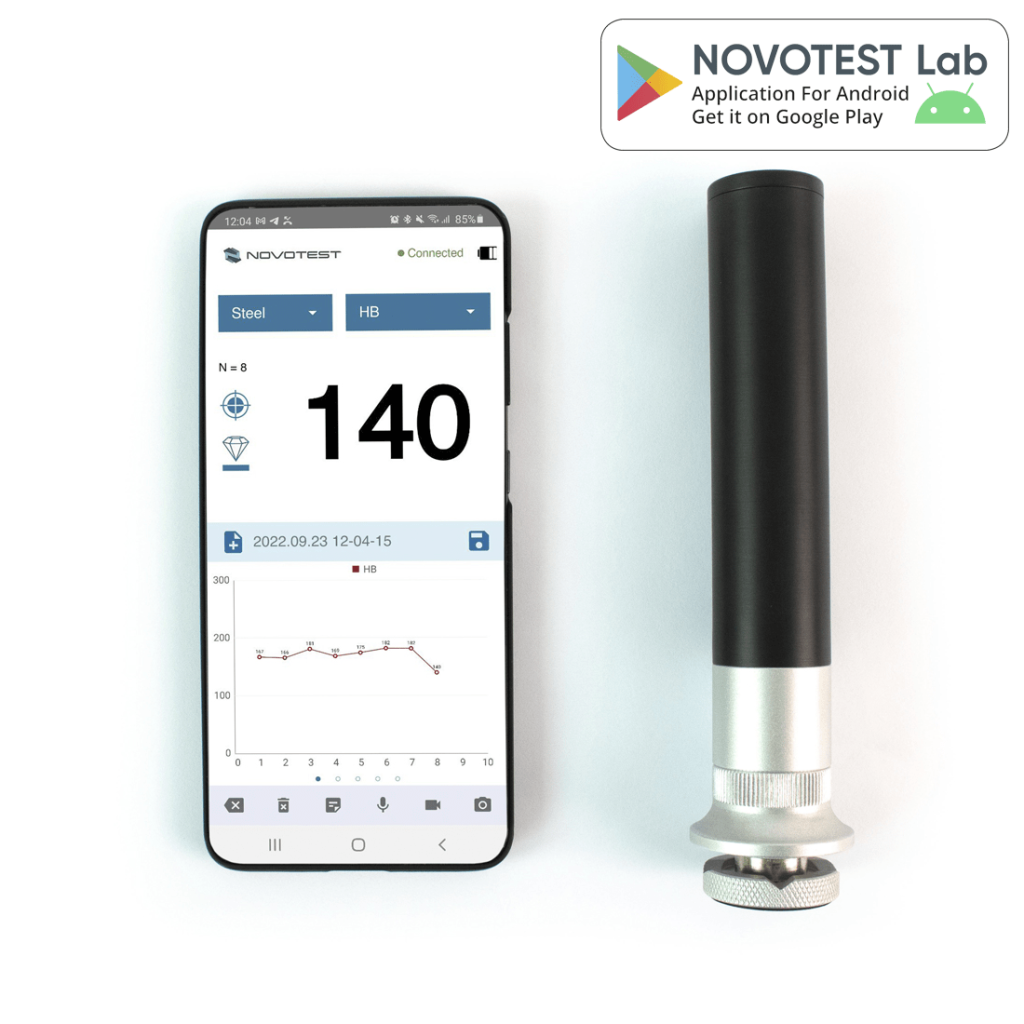

NOVOTEST Lab UCI – wireless ultra-compact UCI hardness tester
Applications
For mobile inspectors and metal warehouses where minimum weight and reports from a phone matter: reports with text, photos, audio and video recordings, one-tap sharing, cloud synchronisation.
Key features
- The whole instrument is a probe – 160 × 26 mm, 0.17 kg, no separate unit
- Integrated battery, ~10 h, charging via USB 5 V
- Calibrations for steel, aluminium, brass; user calibrations
- Operating temperature from -30 °C
- Special nozzle for curved surfaces included
- Reports with multimedia and cloud archive via NOVOTEST Lab
Models
Lab UCI with 10 N / 50 N / 98 N load
Technical data
- Scales: HRC, HB, HV, HRA, HRB, MPa, user-defined
- Range: HRC 20–70; HB 90–650; HV 100–750; Rm 370–1740 MPa
- Probe load: 10 N (HV1), 50 N (HV5), 98 N (HV10)
- Operating environment: -30…+40 °C, 30–80 % RH
- Dimensions / weight: 160 × 26 mm (160 × 36 mm with nozzle) / ~0.17 kg
- Connectivity: wireless with Android (NOVOTEST Lab), USB with PC
Standards
ASTM A1038
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz
