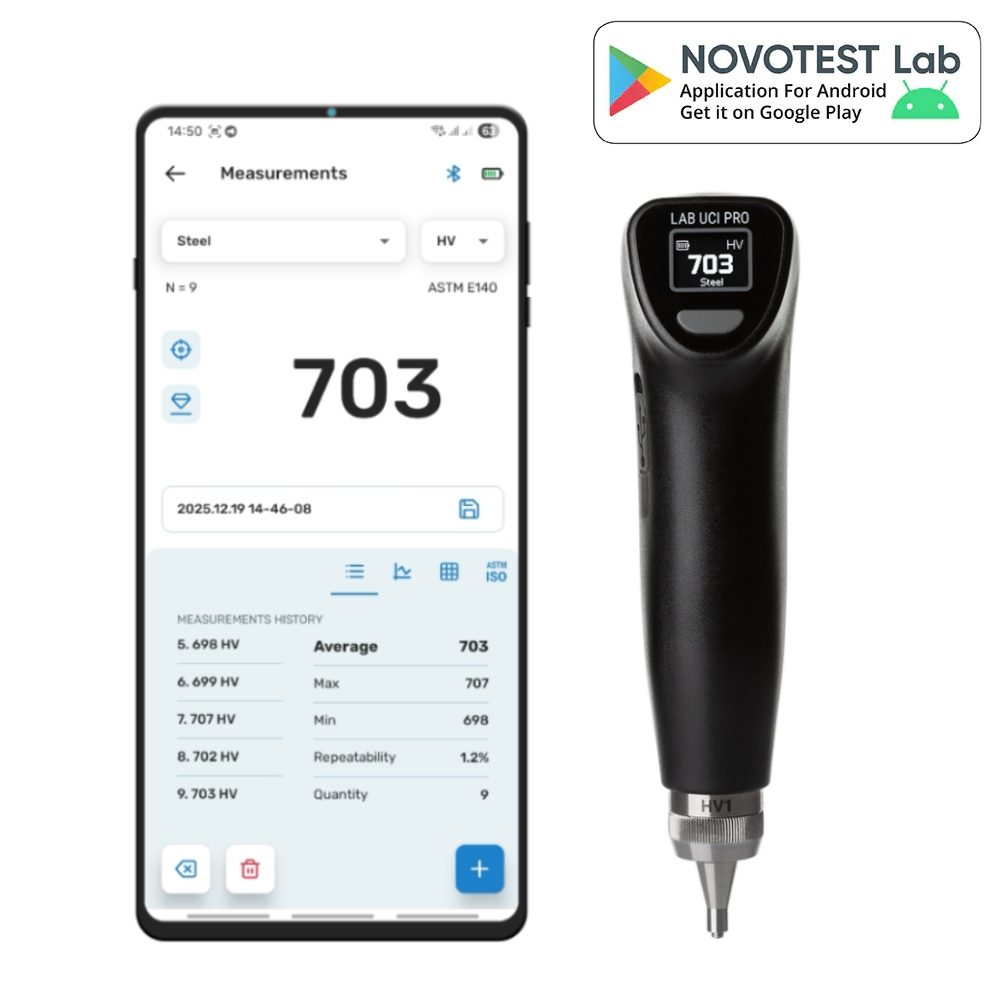

NOVOTEST Lab UCI Pro – new-generation wireless UCI hardness tester with display
Applications
For professional laboratory and field testing when both stand-alone operation without a phone and full NOVOTEST Lab analysis are needed. With the protective cap removed, measurements can be taken in holes up to 20 mm deep, between gear teeth and in narrow grooves.
Key features
- Integrated 0.66” display and controls – works without the app
- Range 0–2000 HV, measurement uncertainty 4 %
- Conversions according to ASTM E140 and ISO 18265; HK scale
- 8 material calibrations (steel, alloy steel, stainless steel, cast iron, nickel, aluminium, brass, copper), user-defined materials
- Li-ion 750 mAh, up to 24 h, USB-C charging; 160 g
- Removable indenter cap for hard-to-reach places
Models
Lab UCI Pro HV1 (9.8 N) / HV5 (49 N) / HV10 (100 N) – depending on the instrument type
Technical data
- Scales: HV, HB, HRC, HRB, HRA, HK, MPa
- Range: 0…2000 HV; uncertainty 4 %
- Load: HV1 (9.8 N), HV5 (49 N) or HV10 (100 N)
- Display: 0.66” (64 × 48); interfaces USB-C, Bluetooth BLE
- Battery: Li-ion 3.7 V 750 mAh, up to 24 h
- Operating temperature: -20…+50 °C
- Dimensions / weight: 153 × 40 mm / 160 g
Standards
ASTM A1038, DIN 50159, ASTM E140, ISO 18265
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz, novotest.biz
