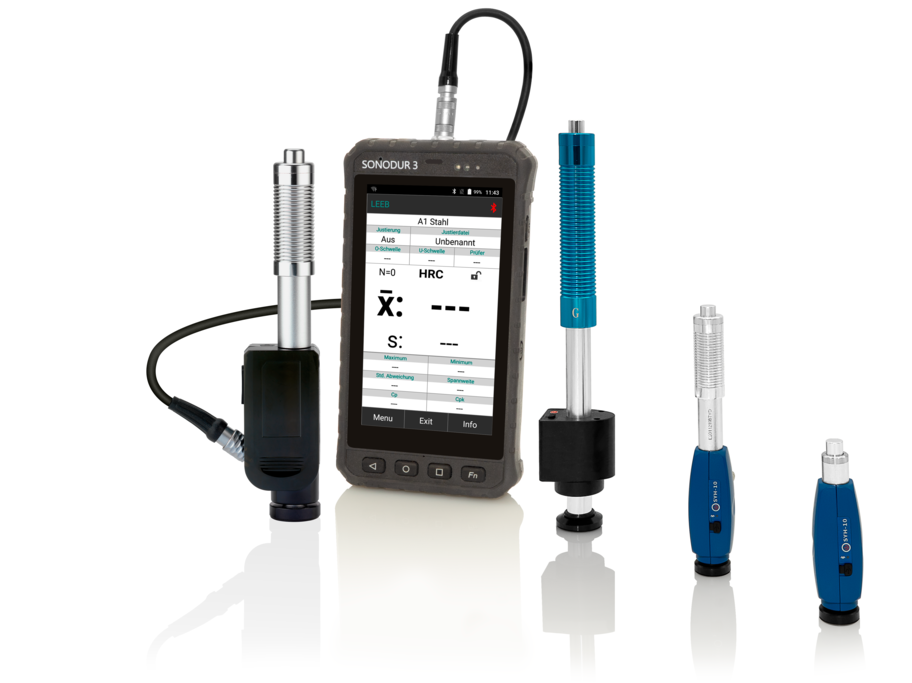

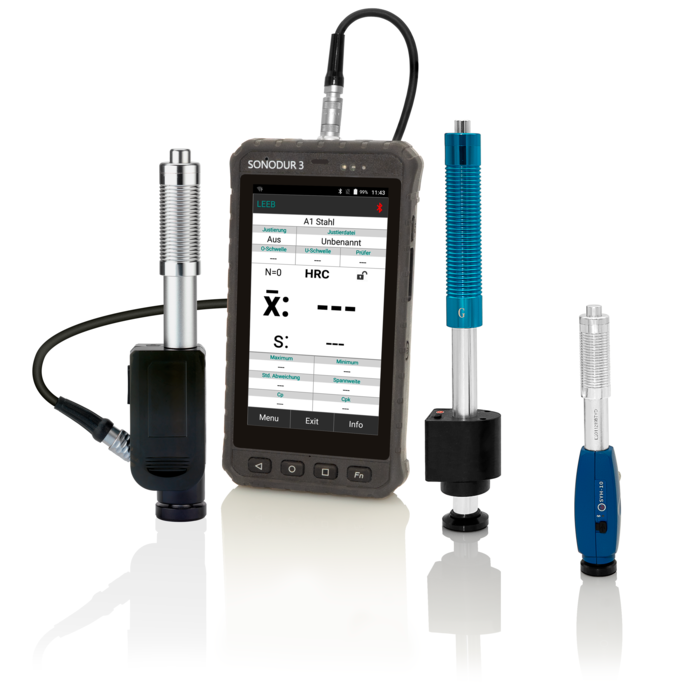

Foerster SONODUR 3 LITE LEEB – portable Leeb hardness tester
Applications
For mobile Leeb hardness measurements where the UCI method and additional functions are not needed. The SONODUR 3 LITE LEEB uses the same high-quality probes and provides the same accuracy as the SONODUR 3, but has no camera functions (image storage, barcodes, DataMatrix), no UCI probe compatibility and no Wi-Fi – data is transferred to a computer via USB. Cabled Leeb D and G or Bluetooth Leeb D, G and DC probes are available.
Key features
- Probes are easy to handle – learned in a few minutes
- Fast measurement – suitable for series inspection of larger components
- Results can be saved, e.g. as Excel or TXT files
- The impact body can be replaced by the user
- Automatic conversion to HV, HB, HRC, HRB and other scales according to EN ISO 18265:2019, ASTM E140:2019 and EPRI P-91 2020
Technical data
| Parameter | SONODUR 3 LITE LEEB |
|---|---|
| Test method | Leeb according to ASTM A956, ISO 16859, GB/T 17394 |
| Conversions | ASTM E140-12b (2019), EN ISO 18265:2019 |
| Operating system | Android 7.0 |
| Operating time | >10 h in measuring mode (depends on settings and conditions) |
| Protection | IP65; industrial ruggedness according to MIL-STD-810G |
| Dimensions / weight | approx. 164 × 86 × 23 mm / approx. 320 g with battery |
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: foerstergroup.com
