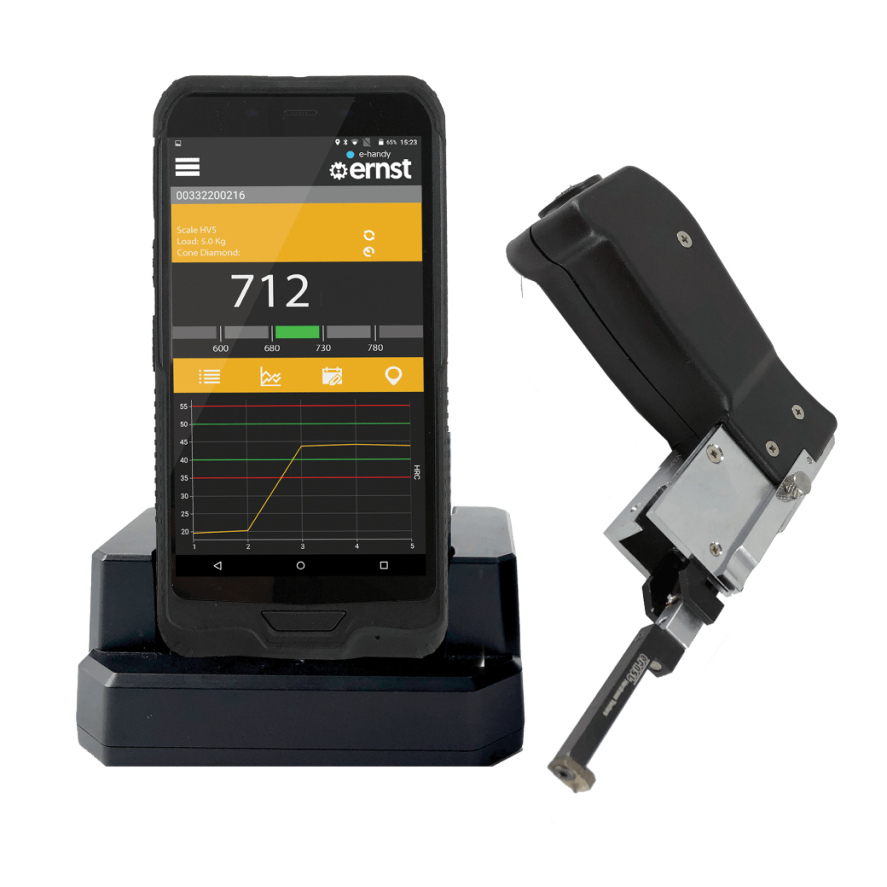

CISAM-Ernst e-handy – portable Esatest® tester for hard-to-reach areas
Applications
For measuring the hardness of metals where conventional testers cannot reach: gears, couplings, cavities, welds and the heat-affected zone (HAZ), as well as assembled units. Thanks to very low loads (1–10 kgf), the part is not damaged. Works on the patented Esatest® principle – the indentation depth is correlated with the change in residual electrical resistance of the conductive diamond indenter.
Key features
- Measurement in inaccessible areas and on assembled components, in all positions
- One indenter for all metals
- Continuous hardness evaluation while varying the load – helps to assess surface heat treatment
- Working area only 2 × 2 mm; min. diameter < 5 mm, special indenters for small cavities
- Wireless data transfer up to 100 m, 16 GB memory
- ACCREDIA (ILAC MRA) certificate on request
Models
| Model | Methods / scales | Load | Note |
|---|---|---|---|
| e-handy | Esatest®; DRE, HB10, HB30, HB5, HRA, HRB, HRC, HRF, HV, N/mm² | 1–10 kgf (9.81–98.1 N) | Manual, progressive load application in real time |
Technical data
- Working area: 2 mm × 2 mm
- Min. measurable diameter: < 5 mm
- Weight: mechanical unit 670 g, electronic unit 380 g
- Display: 5.9” touchscreen tablet
- Interfaces: micro USB, micro TF, Wi-Fi, Bluetooth, GPS
- Power supply: 100–240 V
- Languages: Italian, English, German (others on request)
Standards
DIN 50158; ASTM E-110; ACCREDIA (ILAC MRA).
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: cisam-ernst.com, cisam-ernst.com
