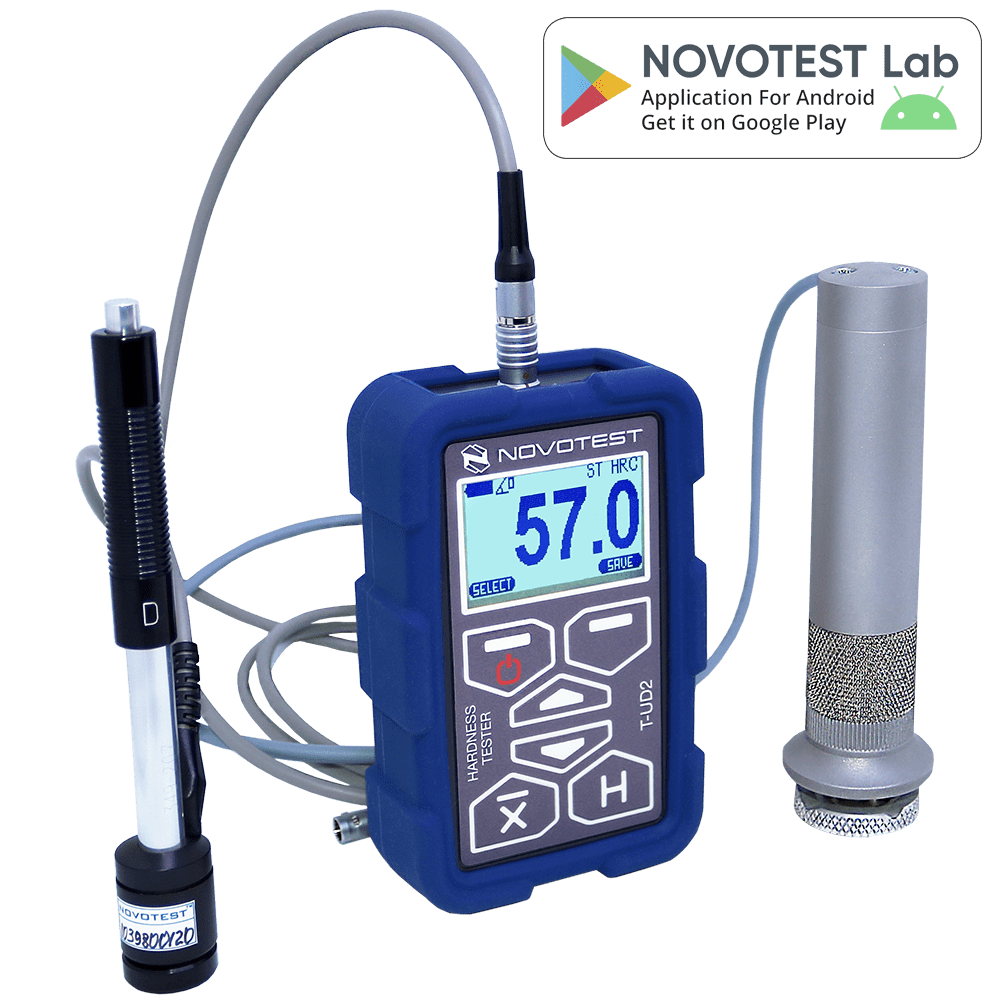

NOVOTEST T-UD2 – combined UCI + Leeb hardness tester
Applications
For companies with very different samples – from massive castings with rough surfaces (Leeb) to thin-walled and small parts, grooves and gear teeth (UCI). One instrument, two methods, automatic probe recognition.
Key features
- Two detachable probes – UCI and dynamic Leeb – with automatic recognition
- Leeb: pre-calibrated for steel, alloy steel, stainless steel and cast iron
- UCI: 10 N probe for polished surfaces, 98 N for rough surfaces
- Backlit graphic display, memory for 256 results, PC connection
- Silicone protective cover, 2 × AA, ≥20 h
- NOVOTEST Lab app for Android (Bluetooth)
Models
T-UD2; T-UD2 (Lab)
Technical data
- UCI probes: 10 N, 50 N, 98 N; Leeb probes: D, DC, DL, C, G, D+15, E
- Scales: UCI – HRC, HB, HV, MPa; Leeb – HRC, HB, HV, HLD, MPa
- Range: HRC 20–70; HB 90–650; HV 230–940
- Min. thickness / weight (UCI): 1 mm / ~100 g
- Operating temperature: -20…+40 °C; 2 × AA, ≥20 h
- Dimensions / weight: 122 × 76 × 37 mm / ≤0.25 kg
Standards
ASTM A1038 (UCI), ASTM A956 (Leeb)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz
