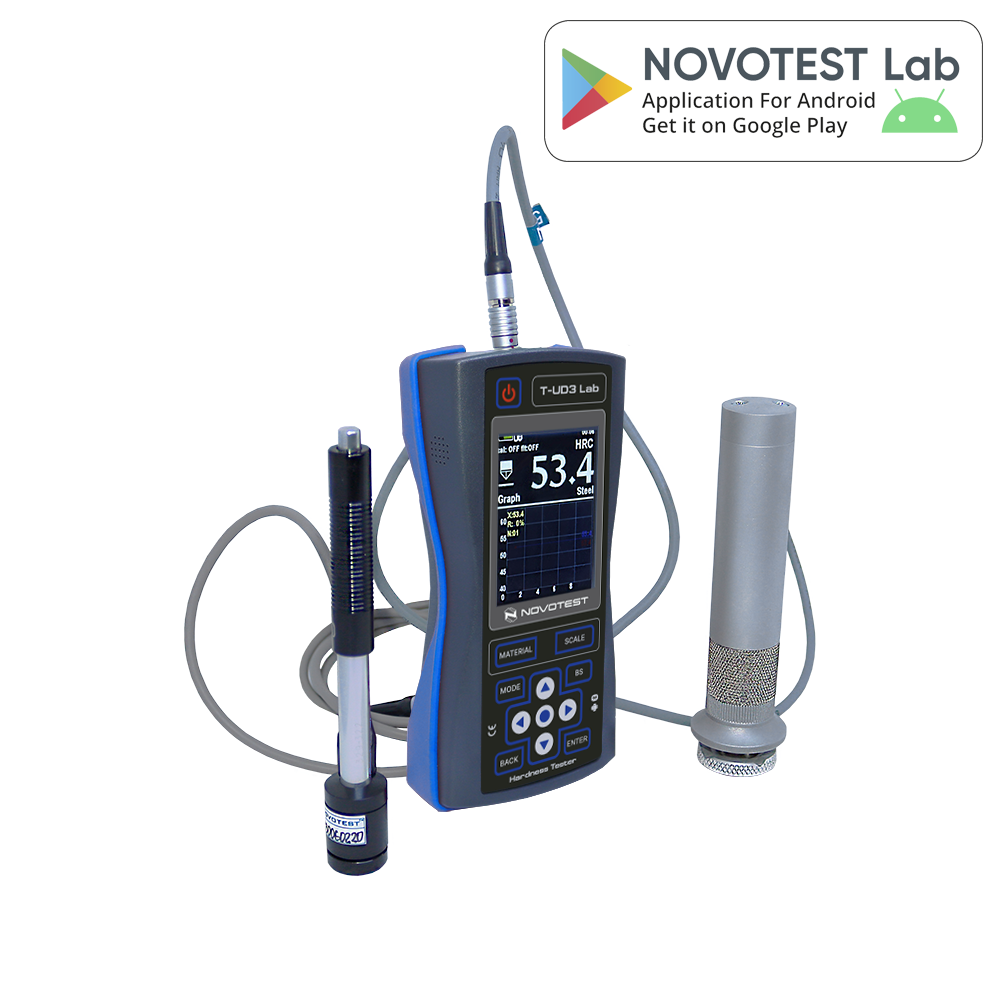

NOVOTEST T-UD3 – combined UCI + Leeb hardness tester with camera
Applications
Versatile portable solution for inspectors and metal warehouses: solid parts, castings and forgings – with the Leeb probe; thin, small, complex-shaped parts and hardened layers – with the UCI probe. Photo documentation and reports via NOVOTEST Lab.
Key features
- UCI and Leeb probes can be changed without switching off the instrument, automatic recognition
- Integrated camera for photos of test points
- 88 material/scale combinations, user calibration (e.g. HV 100–3000)
- Modes: graph, histogram, statistics, Smart, Signal (Leeb)
- Memory card up to 32 GB, USB export to spreadsheet, wireless mini printer (option)
- Warranty 3 (1+2) years
Models
T-UD3; T-UD3 (Lab) with NOVOTEST Lab app
Technical data
- UCI probes: 10 N (1 kgf), 50 N (5 kgf), 98 N (10 kgf); Leeb probes: D, DC, DL, C, G, D+15, E
- Range: HRC 20–70; HB 90–650; HV 230–940; Rm 370–1740 MPa
- Leeb materials: steel, alloy steel, cast iron, stainless steel, aluminium, bronze, brass, copper
- Display: colour LCD 320 × 240; operating temperature -20…+40 °C
- Power supply: 3 × AA, ~10 h
- Dimensions / weight: 160 × 75 × 30 mm / ~0.3 kg (without probe)
Standards
ASTM A1038, ASTM A956
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz, novotest.biz
