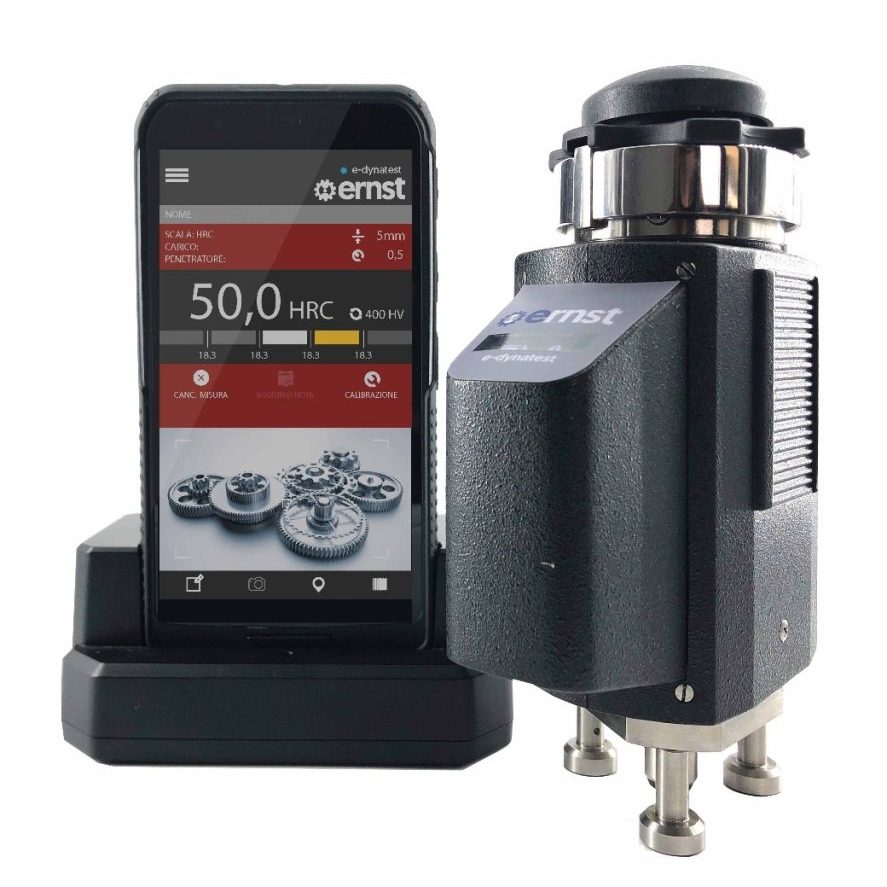

CISAM-Ernst e-dynatest – portable Rockwell tester for large parts
Applications
For on-site Rockwell hardness testing, especially of large and hard-to-move parts (castings, shafts, structures). The full 100 kgf test load is applied with a single manual press, and results are transmitted wirelessly to a tablet with an Android app.
Key features
- Full Rockwell C load (100 kgf) in a portable instrument
- One manual press – one test
- Adjustable in all directions
- Wireless data transfer between the measuring head and the tablet
- Android app for storing, managing, sharing and printing results
- ACCREDIA (ILAC MRA) certificate on request
Models
| Model | Methods / scales | Load | Note |
|---|---|---|---|
| e-dynatest | Rockwell; HRC 10–70, 1HB30 160–700, 2HB30 100–500 | 100 kgf (980 N), preload 3.45 kgf (33.8 N) | Manual load application |
Technical data
- Accuracy: HRC 0.3; HB < 1 %
- Min. measurable diameter: 25 mm standard; 12 mm with a special indenter cover
- Weight: mechanical unit 2050 g, electronic unit 360 g
- Display: 6” tablet touchscreen
- Interfaces: Wi-Fi, Bluetooth, micro USB, micro SD
- Power supply: 100–240 V
- Languages: Italian, English, German (others on request)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: cisam-ernst.com, cisam-ernst.com
