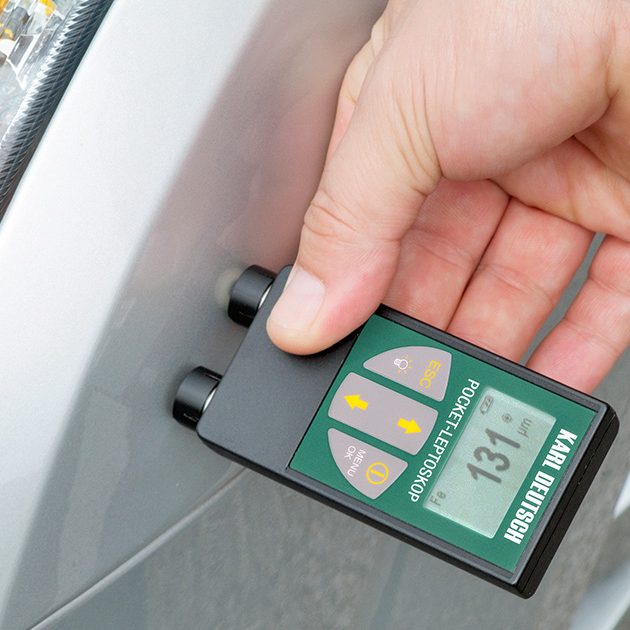

Karl Deutsch Pocket-LEPTOSKOP – pocket coating thickness gauge
Applications
One of the smallest electronic coating thickness gauges with an integrated spring-loaded probe, designed for quick one-handed checks. Three versions: for steel (Fe), for non-ferrous metals (NFe) or combined with automatic substrate recognition. Suitable for painters, quality inspectors and maintenance services.
Key features
- Large illuminated display that can be rotated with one button when measuring overhead
- Integrated spring-loaded probe – constant contact pressure
- Measures paint, lacquer, plastic, rubber, chrome, copper, zinc, anodising on metals
- Optional “Statistics and memory” module: min/max/mean, limit values, graph
- Language selection, keypad lock, data transfer to PC (iCom)
Models
Pocket-LEPTOSKOP 2018 (NFe, eddy current, 2018.901); 2021 (Fe, magnetic induction, 2021.901); 2026 (combined Fe/NFe, 2026.901); module 2910.001 “Statistics and data storage”
Technical data
- Units: µm, mm, mils, inch
- Memory with module: up to 800 readings
Standards
DIN EN ISO 2360 (2018), DIN EN ISO 2178 (2021)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de
