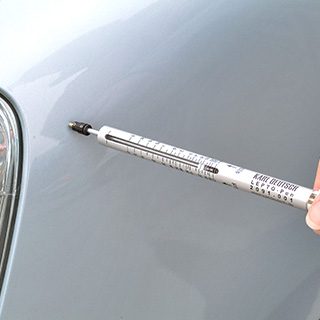

Karl Deutsch LEPTO-Pen 2091 – mechanical coating thickness gauge for steel
Applications
A simple and economical instrument for quickly checking the thickness of non-magnetic coatings on unhardened commercial steel when the accuracy of an electronic gauge is not needed. Suitable for painters, installers and facility maintenance when a paint or zinc layer needs to be assessed without batteries or calibration.
Key features
- Works on the magnetic attraction principle according to EN ISO 2178 – no electronics or batteries
- Precision magnet and mechanical spring balance with a scale in µm
- No on-site calibration needed – suitable for quick checks on site
- Service life of at least 500,000 measuring cycles
- Minimal price compared with electronic gauges
Models
LEPTO-Pen 2091 (order no. 2091.001)
Technical data
- Method: magnetic attraction (adhesion) principle
- Measuring range: 10–500 µm (0.25–20 mil)
- Scale: 0–800 µm (0–30 mil)
- Uncertainty within the range: ±10 % ±3 µm
- Service life: min. 500,000 cycles
Standards
EN ISO 2178
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de
