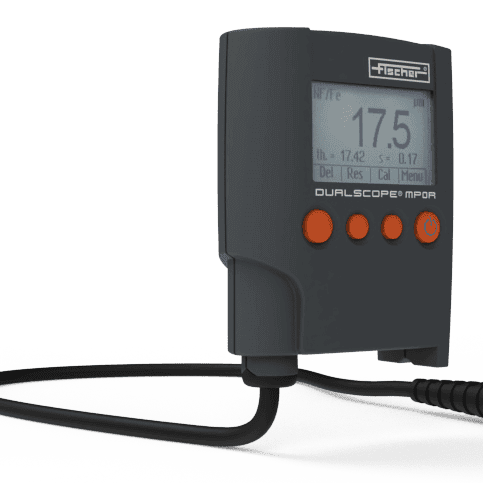

Helmut Fischer MP0 / MP0R series – compact coating thickness gauges for corrosion protection
Applications
Compact series of handheld gauges for measuring the thickness of paint, hot-dip galvanised and plastic coatings on site on most metals. The instrument automatically selects the method according to the substrate; the low-wear probe pole is designed for thousands of measurements. Suitable for painting and galvanising companies, shipbuilding and steel structure fabrication.
Key features
- Two illuminated displays – the second on top for overhead measurement (MP0R – auto-rotating)
- Magnetic induction and amplitude-sensitive eddy current methods
- Accurate conductivity compensation
- MP0R: memory for 10,000 readings, USB, preset IMO PSPC and SSPC-PA2 modes
- Integrated or cable probe (FP, FPW angled)
- Limit value monitoring with light signal
Models
MP0 (basic, 1,000 readings, no USB) – DUALSCOPE, PERMASCOPE; MP0-FP with cable probe; MP0R (comfort, 10,000 readings, USB) – DUALSCOPE, ISOSCOPE, PERMASCOPE; MP0R-FP, MP0R-FPW (angled cable probe)
Technical data
- Method: magnetic induction and amplitude-sensitive eddy current
- Range: DUALSCOPE 0–2,000 µm; ISOSCOPE 0–1,200 µm; PERMASCOPE 0–2,500 µm
- Memory: 1,000 (MP0) / 10,000 (MP0R) readings
- Data transfer: USB (MP0R only)
- Probe: integrated or permanently connected cable probe
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: helmut-fischer.com
