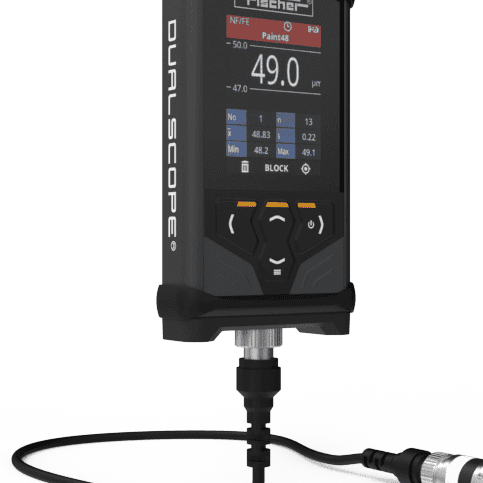

Helmut Fischer DMP10-40 series – universal coating thickness gauges with interchangeable probes
Applications
A universal series of handheld gauges for quality assurance in production and in the laboratory – non-destructive coating thickness measurement on ferrous and non-ferrous metals with a very wide range of probes. The entry (DMP10/20) and comfort (DMP30/40) versions differ in memory, number of applications and interfaces.
Key features
- All-aluminium housing IP64, replaceable Li-Ion battery, > 24 h of operation
- Digital probes via USB-C or Bluetooth; analogue probes via the F adapter
- Up to 250,000 readings in 2,500 batches and up to 2,500 measuring applications (DMP30/40)
- Limit value alarms by light, sound and vibration
- FISIQ T software: synchronisation, reports, Excel export, REST API
- DELTASCOPE, ISOSCOPE and DUALSCOPE versions according to the base material
Models
DELTASCOPE DMP10 / DMP30 (magnetic induction, Fe); ISOSCOPE DMP10 / DMP30 (eddy current, NF); DUALSCOPE DMP20 / DMP40 (both methods, Fe + NF)
Technical data
- Method: magnetic induction and/or amplitude-sensitive eddy current
- Range: depends on the coating / substrate combination and the probe
- Memory: 10,000 readings in one batch (DMP10/20) or 250,000 readings in 2,500 batches (DMP30/40)
- Number of applications: 1 (DMP10/20) / up to 2,500 (DMP30/40)
- Battery: replaceable Li-Ion, > 24 h
- Housing: aluminium, IP64
- Interfaces: USB-C; USB-C + Bluetooth (DMP30/40)
Standards
DIN EN ISO 2178 (DELTASCOPE, DUALSCOPE), DIN EN ISO 2360 (ISOSCOPE, DUALSCOPE), ASTM D7091, ASTM 4471 (as stated by the manufacturer)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: helmut-fischer.com
