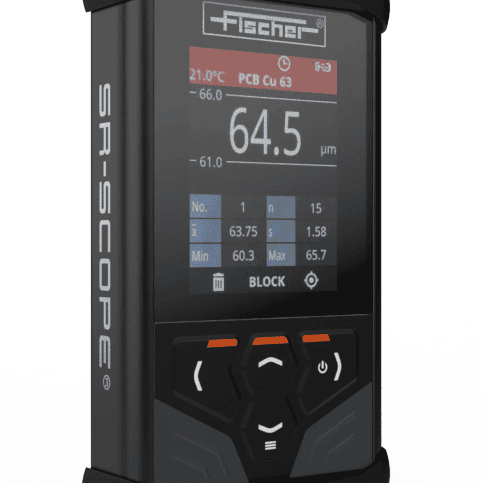

Helmut Fischer SR-SCOPE DMP30 – copper thickness gauge for PCBs
Applications
A handheld instrument for electronics manufacturers for measuring the thickness of thin copper layers on multilayer PCBs and laminates without influence from deeper, insulated copper layers. Digital D-PCB probe, FISIQ T software.
Key features
- Electrical 4-point resistance (micro-resistance) method according to DIN EN 14571
- Insensitive to deeper copper layers
- All-aluminium housing IP64, replaceable Li-Ion battery > 24 h
- Limit value alarm by light, sound and vibration
- USB-C and Bluetooth; REST API, direct Excel export
- 250,000 readings in 2,500 applications
Models
two ranges – 0.5–10 µm and 5–120 µm; digital D-PCB probe
Technical data
- Method: micro-resistance (4-point)
- Range: 0.5–10 µm or 5–120 µm
- Memory: 250,000 readings / 2,500 applications
- Protection: IP64
- Battery: replaceable Li-Ion, > 24 h
- Interfaces: USB-C, Bluetooth
Standards
DIN EN 14571
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: helmut-fischer.com
