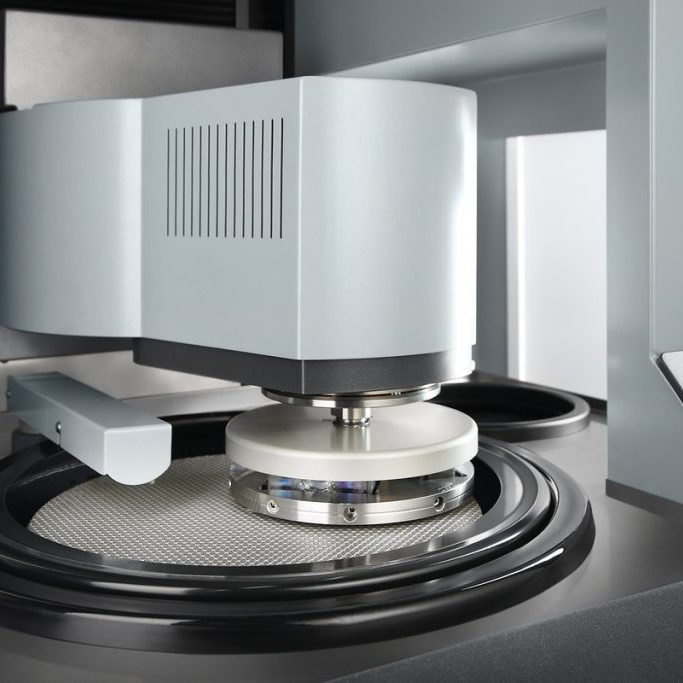

QATM Qpol XL / Qgrind XL – high-throughput polishing and plane grinding
Applications
For high-throughput industrial laboratories (automotive, steel, foundries) and System Lab lines. Qgrind XL quickly removes material with a plane grinding stone after cutting and mounting; Qpol XL – for subsequent grinding and polishing with large (Ø159–204 mm) holders.
Key features
- Force control by an electronic measuring system, 50–750 N (both models).
- Qgrind XL: ForceControl, SmartGrind (automatic setting of dressing intervals), “Roughing” mode – up to 20 % more removal, “Finishing” – up to 15 % better surface; removal range 0.1–10 mm.
- Qpol XL: modular dosing of up to 6 bottles (1 l), motorised dosing arm, integrated removal measurement 0.1 mm.
- Cleaning Boost up to 800 min⁻¹; tool-free disc and holder change; automated safety hood.
- 7” display, 200 methods, user accounts, USB/Ethernet for remote maintenance.
- Made in Germany; optional cleaning station, recirculating cooling, signal lamp.
Models
| Model | Working disc / stone | Holder | Contact force | Drive |
|---|---|---|---|---|
| Qpol XL | Ø300 / 350 mm discs, 50–600 min⁻¹ | Ø159–204 mm, 50–350 min⁻¹ | 50–750 N central | 2.2 kW disc; 0.75/1.1 kW head |
| Qgrind XL | stone up to Ø356 mm, 1000–2000 min⁻¹ | Ø160–204 mm, 30–160 min⁻¹ | 50–750 N central | 4 kW stone; 0.75 kW holder |
| Saphir 375 (previous model) | stone Ø350 mm, 1390 min⁻¹ (50 Hz) | Ø160–204 mm, 30–150 min⁻¹ | central | 4 kW S3 60 %; 0.17 kW head |
Technical data
- Connected load: Qpol XL – 6 kVA; Qgrind XL – 9 kVA; Saphir 375 – 7 kVA.
- Power supply 400 V/50 Hz, 480 V/60 Hz or 220 V/60 Hz, 3-phase.
- Weight: Qpol XL ~420 kg; Qgrind XL ~433 kg; Saphir 375 ~230 kg.
- Removal measurement accuracy: ±0.1 mm (Qgrind XL, at 1 mm removal); 0.1 mm (Qpol XL).
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
