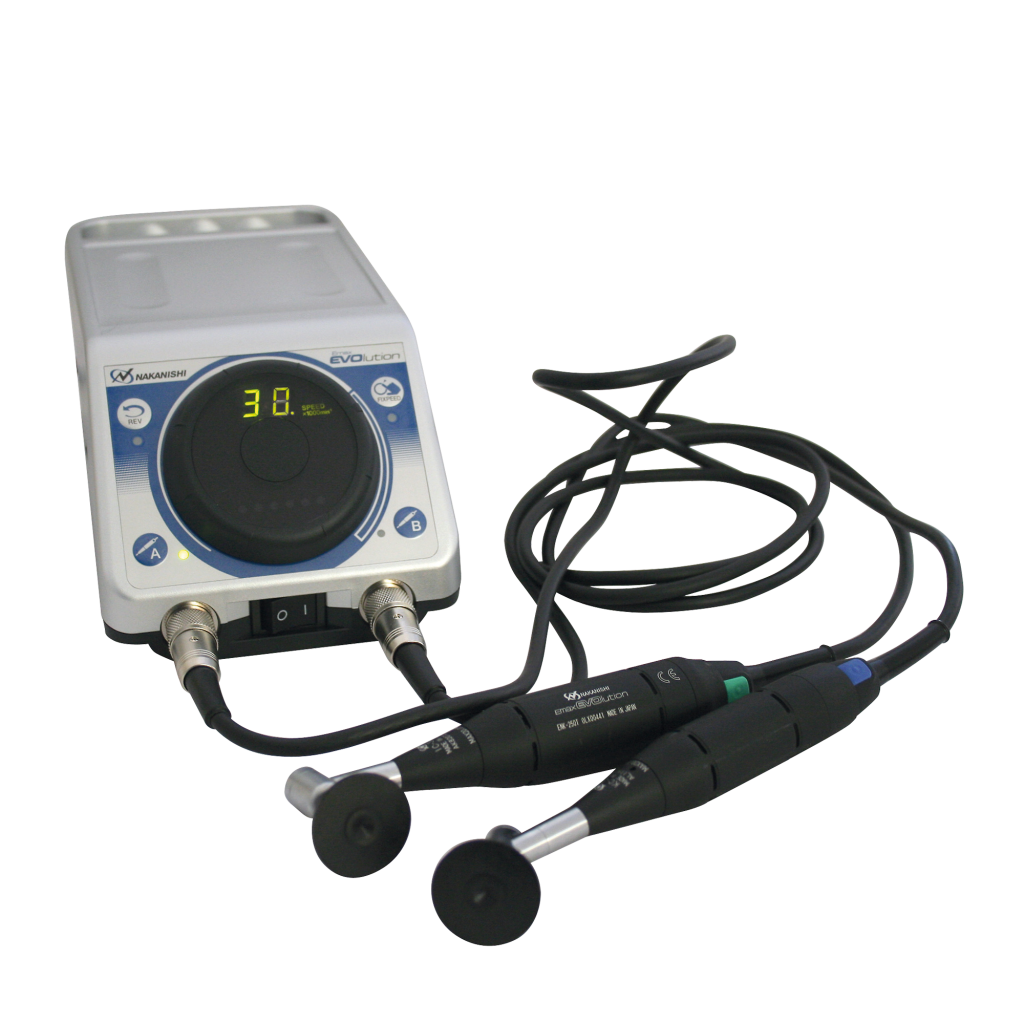

QATM Qpol 30 / Qgrind 100 – mobile grinder and belt grinder
Applications
Qpol 30 – for field metallography and non-destructive testing on equipment in service (pipelines, pressure vessels, turbines), when a specimen cannot be cut out and the surface is prepared for a replica or a portable hardness tester. Qgrind 100 – for quick rounding of specimen edges and pre-grinding before or after mounting.
Key features
- Qpol 30: continuously adjustable speed 1,000–40,000 min⁻¹ with display; gearbox increases torque; control unit for two micromotors; only ~2.3 kg.
- Both are compact and need no laboratory infrastructure (Qpol 30 – 230 V socket).
Models
| Model | Main parameter | Drive | Dimensions / weight |
|---|---|---|---|
| Qpol 30 (Saphir 300) | Ø30 mm discs, 1,000–40,000 min⁻¹ | 230 V, 50–60 Hz | 130×97×254 mm, ~2.3 kg |
| Qgrind 100 (Jade 700) | – | – | – |
Technical data
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
