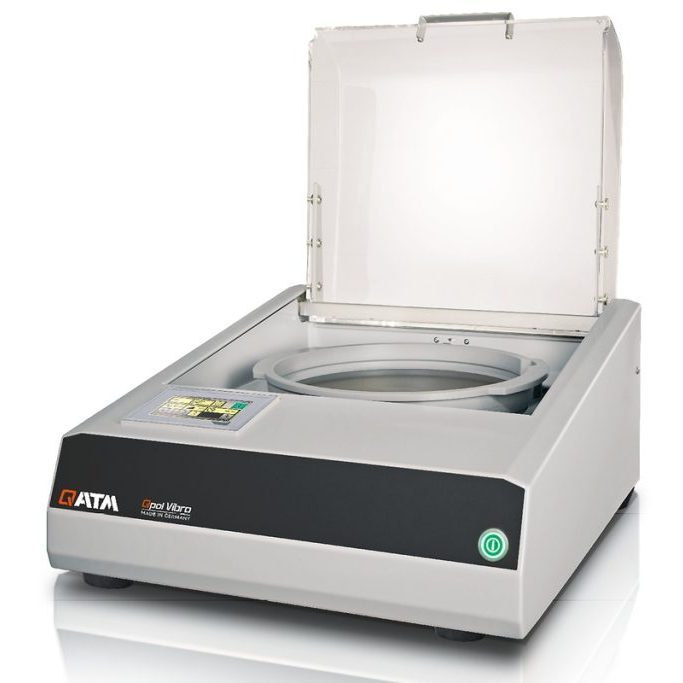

QATM Qpol Vibro – vibratory polisher for final polishing
Applications
For laboratories that need a surface free of a deformation layer – for EBSD, microhardness, soft metals (Al, Cu, Ti) and sensitive materials. The process runs without an operator; samples are polished under their own weight on a vibrating cloth with an oxide or colloidal suspension.
Key features
- Automatic vibration frequency control 60–120 Hz; low noise, vibration-damping design.
- Quick-change, magnetically held polishing bowl.
- Surface-Guard mode – reduces suspension crystallisation and sample corrosion after polishing.
- 15 preinstalled methods with matched consumables; up to 200 user methods (on the instrument or USB).
- Transparent, soft-closing acrylic hood; connection to external extraction.
Models
| Model | Bowl inner Ø | Polishing cloth | Frequency | Drive |
|---|---|---|---|---|
| Qpol Vibro (Saphir Vibro) | Ø308 mm | 300 mm / 305 mm (12”) | 60–120 Hz, automatically adjusted | 135 VA |
Technical data
- Connected load 0.25 kVA; power supply 220–240 V or 100–120 V, 50/60 Hz.
- Extraction connection Ø40 mm; IP 22; interfaces USB, Ethernet.
- Dimensions (W×H×D) 510×300×590 mm; weight ~45 kg.
- Modes: manual or automatic with timer alert.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com
