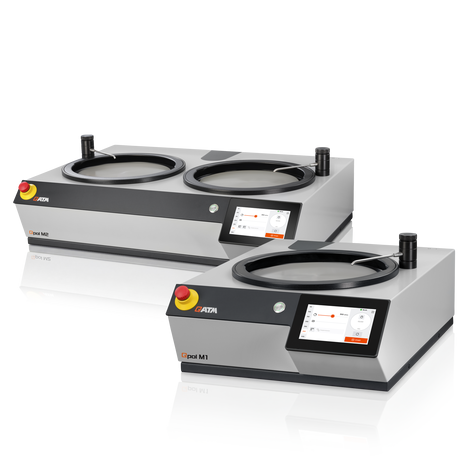

QATM Qpol M1 / M2 – manual grinding and polishing machines
Applications
For low- and medium-throughput laboratories, training institutions and quality departments that need reliable manual grinding and polishing with reproducible parameters. The M2 with two discs allows a grinding and a polishing medium to be kept at the same time. It can later be upgraded with the automatic Qpol GO head.
Key features
- Single-disc design (without a carrier plate) – quick change of the working disc.
- 7” industrial touchscreen with timer and torque / contact force display – manual work becomes reproducible.
- Speed-controlled, low-vibration drive; reversible direction of rotation.
- Automatic water valve, pull-out tap, Cleaning Boost (750 min⁻¹, ~3 s) for drying the medium.
- Optional dosing systems Qdoser GO (automatic) / Qdoser ONE (dropper), magnetic stirrer.
- Welded, powder-coated aluminium housing.
Models
| Model | Discs | Disc Ø | Drive | Dimensions / weight |
|---|---|---|---|---|
| Qpol M1 (Qpol 250/300 M1, Saphir 250 M1) | 1 | 200/250/300 mm | 0.75 kW S1 / 1.1 kW S3 | 511×293×756 mm, ~40 kg |
| Qpol M2 (Qpol 250/300 M2, Saphir 250 M2) | 2 | 200/250/300 mm | 0.75 kW S1 / 1.1 kW S3 | 901×293×749 mm, ~60 kg |
Technical data
- Speed 30–600 min⁻¹, continuously adjustable; inner bowl Ø350 mm.
- Connected load 1.4 kVA; power supply 220–240 V or 100–120 V, 50/60 Hz, 1 phase.
- Water: 1× G½”, max 6 bar; USB interface; ambient temperature 10–40 °C.
- Contact force – manual.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
