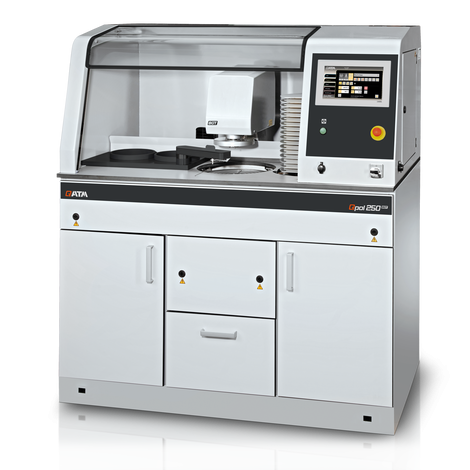

QATM Qpol 250 BOT / Qpol 300 BOT – fully automatic grinding and polishing systems
Applications
For series production laboratories with a high specimen throughput, where the entire grinding–polishing–cleaning–drying cycle must run without human intervention and with fully reproducible results. Qpol 250 BOT – a compact all-in-one solution; Qpol 300 BOT – a modular line with two independent heads.
Key features
- Qpol 250 BOT: automatic changer for 16 grinding/polishing media, 6-channel dosing (4× diamond suspension/lubricant, 2× fine polishing), cleaning station with ultrasound, 45 l sedimentation tank.
- Qpol 300 BOT: 4–8 workstations, up to 11 programmable operations, two heads grinding and polishing simultaneously, plane grinding stone station with automatic dressing, warm air dryer.
- Material removal measured by force sensors; central force 50–450 N (300 BOT).
- Touch screen with drag-and-drop programming, 200 methods; LAN for remote maintenance and updates.
- Light barrier for the danger zone; Vacu-Jet or magnetic disc mounting (300 BOT).
- Compatible with the QATM System Lab laboratory furniture system.
Models
| Model | Disc Ø | Holder | Media change | Stations |
|---|---|---|---|---|
| Qpol 250 BOT | Ø250 mm | Ø160 mm, 30–150 min⁻¹ | up to 16 media | 1 integrated (grinding/polishing/cleaning) |
| Qpol 300 BOT (Systemautomat) | up to Ø300 mm; stone Ø350 mm | Ø160–204 mm, 20–120 min⁻¹; magazine for up to 12 holders | foil changer, 4 compartments | 4–8 modular |
Technical data
- Qpol 250 BOT: working wheels Ø 250 mm; drive power 1.1 kW; sample holder Ø 160 mm; head speed 30–150 rpm, wheel speed 50–600 rpm; removal measurement display accuracy 0.1 mm; up to 16 grinding discs in the disc changer; 6-fold dosing unit; 10″ touchscreen; up to 200 preparation methods; dimensions (W × H × D) 1320 × 1500 × 800 mm
- Qpol 300 BOT: working wheels up to Ø 300 mm; sample holders Ø 160–204 mm, 20–120 rpm; wheel speed 50–600 rpm; central force 50–450 N; grinding stone Ø 350 mm; connection power 4.3–15.6 kVA (depending on configuration); dimensions (W × H × D) 2260–4020 mm (4–8 stations) × 1750 × 950 mm
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
