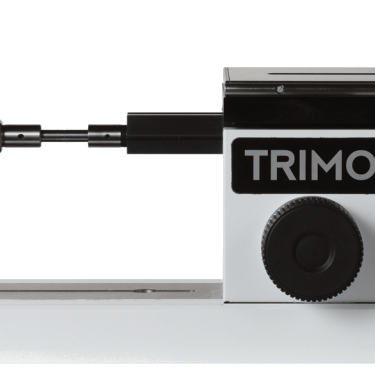

Trimos THV – compact calibration bench for small gauges
Applications
For calibrating and certifying small measuring instruments: plug gauges, ring gauges, thread plug gauges, lever-type and dial indicators, as well as precision production parts. The integrated optoelectronic measuring system ensures high accuracy; results are shown on a separate display or on a computer with Trimos WinDHI software. The THV is also available without a measuring system – an electronic probe or indicator is then used. Thanks to its small size, it is often used as a mobile calibration station.
Key features
- Suitable for clean rooms and the shop floor
- Meets ISO 9000 requirements
- Very simple operation
- Wide range of accessories
- Checking of external and internal dimensions
- Mounted horizontally or tilted up to 90°
Technical data
| Parameter | THV |
|---|---|
| Absolute measuring range* | 50 mm |
| Application range (external / internal)* | 100 mm / 100 mm |
| Maximum permissible error | 0.2 + L/250 µm |
| Repeatability (2s) | 0.1 µm |
| Resolution (depending on display) | 0.1–0.00001 mm |
| Measuring force (adjustable) | 0–4 N |
| Operating temperature | +10…+40 °C |
| Weight | 22 kg |
* The range depends on the probes used. Values determined at 20 ± 0.5 °C and 50 ± 5 % relative humidity. L – measured length, mm.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
