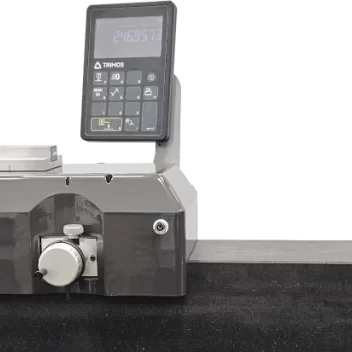

Trimos HS8 – measuring and setting bench for long dimensions up to 12 m
Applications
For fast and accurate quality control in production areas: setting all types of comparative measuring instruments, checking lengths, internal and external diameters, and thread gauges. The integrated measuring system and display ensure good results with simple operation. The HS8 is manufactured in sizes from 3000 to 12,000 mm; a wide choice of easily interchangeable accessories is available.
Key features
- Suitable for the shop-floor environment
- Very simple operation
- Accurate checking and setting
- Wide choice of accessories
Technical data
| Model | Measuring range* | Weight |
|---|---|---|
| HS8 3000 | 3000 mm | 550 kg |
| HS8 4000 | 4000 mm | 1650 kg |
| HS8 5000 | 5000 mm | 2500 kg |
| HS8 6000 | 6000 mm | 3400 kg |
| HS8 8000 | 8000 mm | 5800 kg |
| HS8 12000 | 12,000 mm | 10,000 kg |
All models: maximum permissible error (BMPE) 0.7 + L/750 µm, repeatability (2s) 0.5 µm, resolution 0.01 / 0.001 / 0.0001 mm, maximum speed 2000 mm/s, measuring force 3 N, interfaces RS232 / USB, operating temperature +10…+40 °C. * The range depends on the measuring probes used. Values determined at 20 ± 0.5 °C and 50 ± 5 % relative humidity.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
