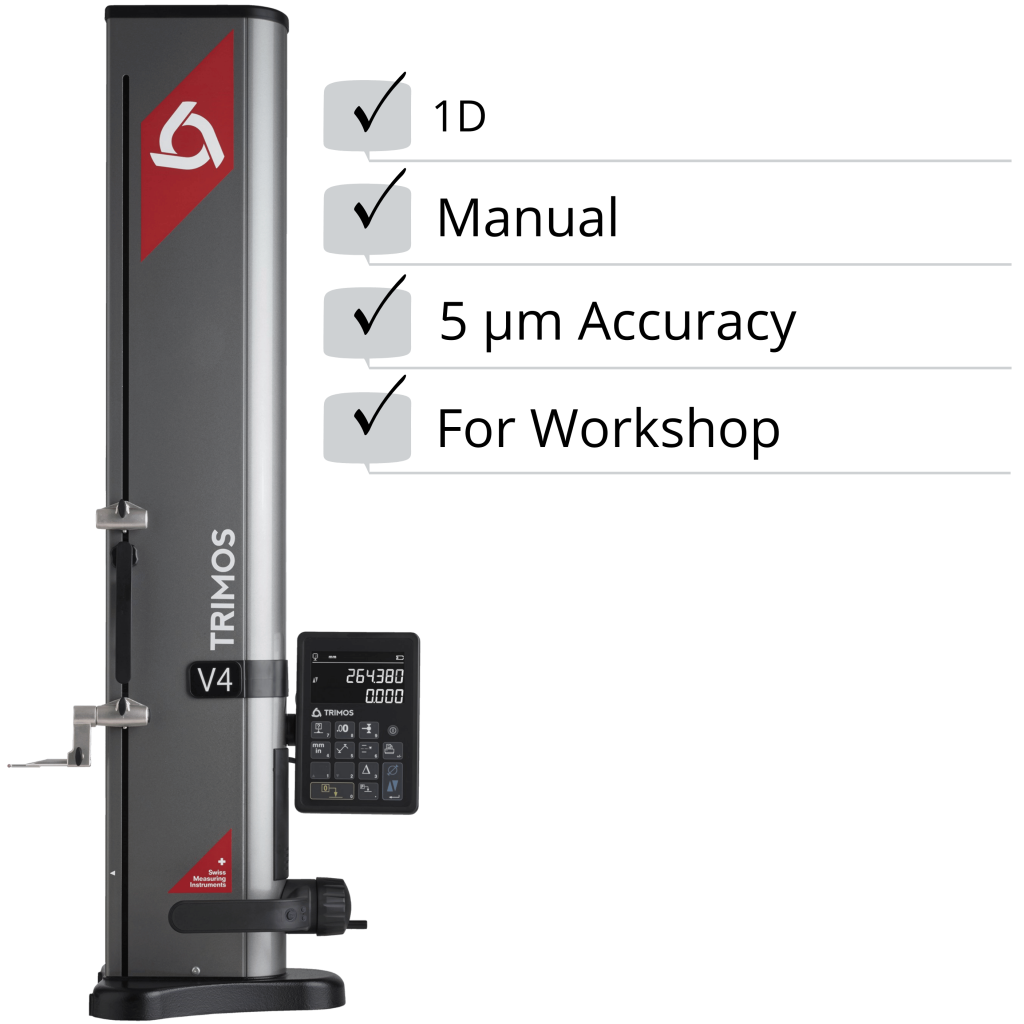

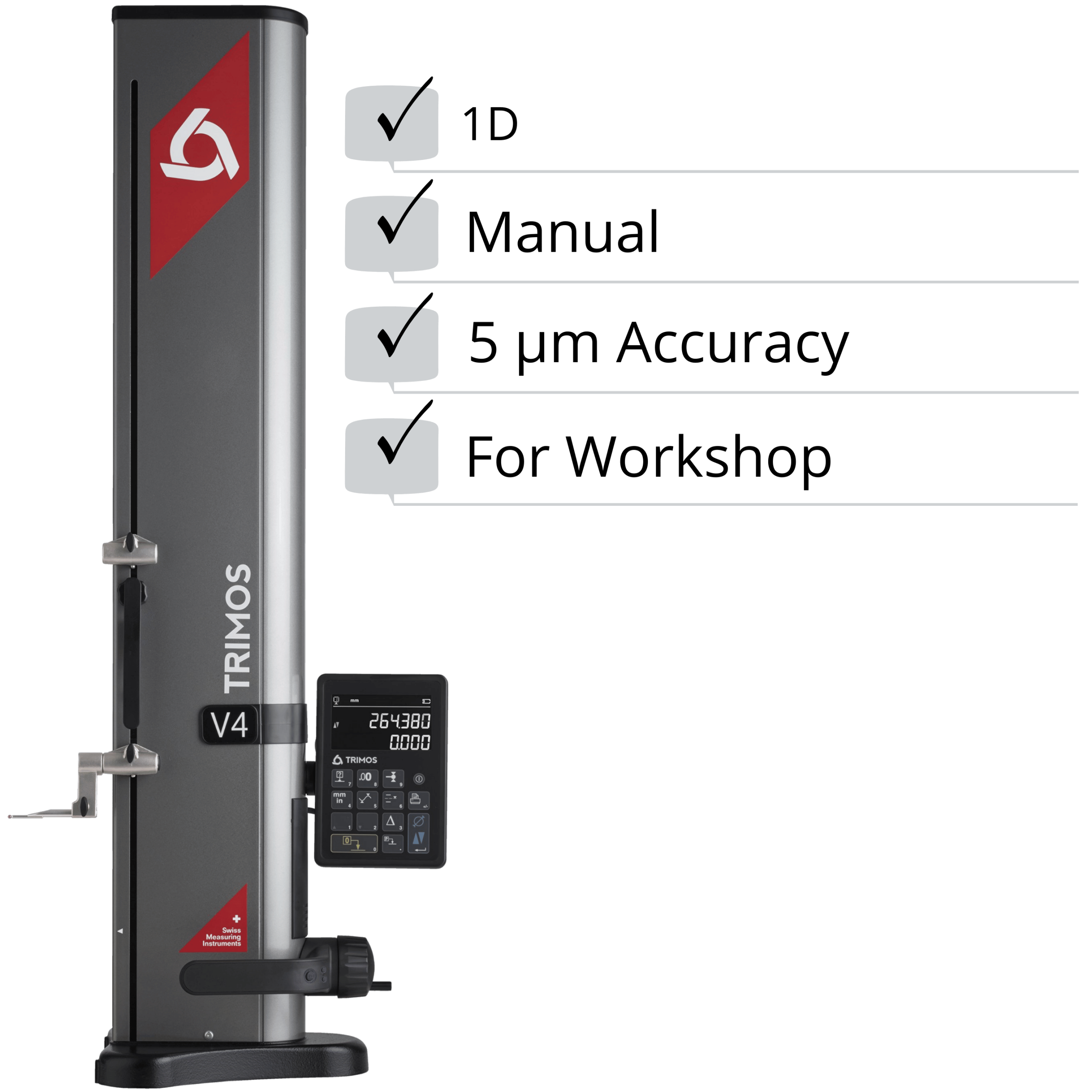

Trimos V4 – height gauge with air cushion and second probe holder
Applications
For production workshops and quality control where the instrument is frequently moved on the surface plate. The V4 extends the capabilities of the V3: it has a second probe holder and an air cushion for easy movement. The handle has programmable function buttons for the most frequently used functions, so both experienced and less trained staff can work efficiently with the instrument. The large two-line “Black Mask” display is easy to read in any lighting.
Key features
- Measuring ranges 400 and 700 mm
- Air cushion and second probe holder
- Programmable handle buttons
- Electronically adjustable measuring force
- Li-ion battery – 20 h of operation
- Standard probes up to 400 mm
- All adjustments without tools
- USB and RS232, wireless data transfer (optional)
- Entirely made in Switzerland
Technical data
| Parameter | V4 400 | V4 700 |
|---|---|---|
| Measuring range | 407 mm | 711 mm |
| Application range | 719 mm | 1023 mm |
| Maximum permissible error (BMPE) | 2.5 + L/250 µm | 2.5 + L/250 µm |
| Repeatability (2s) | 2 µm (Ø: 3 µm) | 2 µm (Ø: 3 µm) |
| Perpendicularity deviation (SMPE) | 9 µm | 13 µm |
| Resolution | 0.001 mm | 0.001 mm |
| Measuring force | 0.75–1.5 N | 0.75–1.5 N |
| Autonomy | 20 h | 20 h |
| Interfaces | USB / RS232 / wireless (optional) | USB / RS232 / wireless (optional) |
| Air cushion | yes | yes |
| Weight | 21 kg | 24 kg |
L – measured length, mm. Values determined according to ISO 13225 with standard probe TA-MI-101.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
