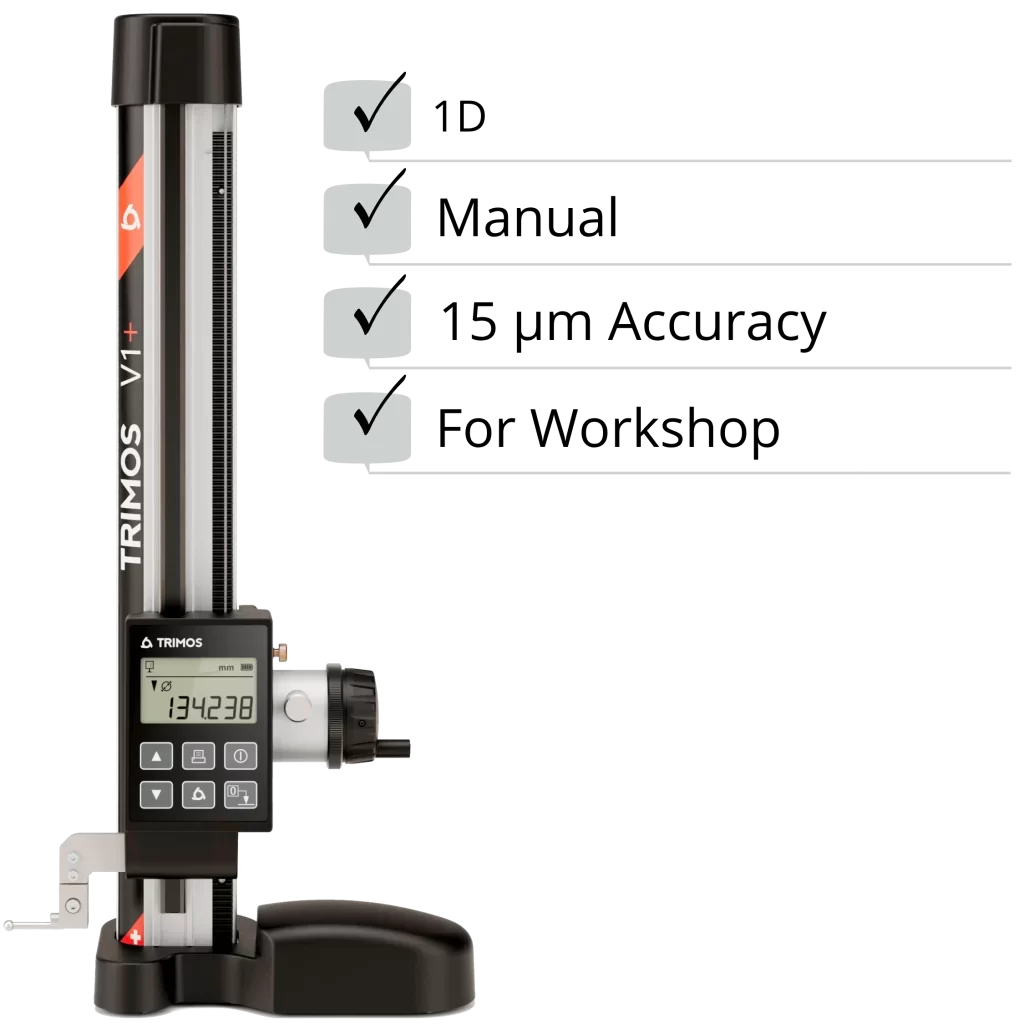

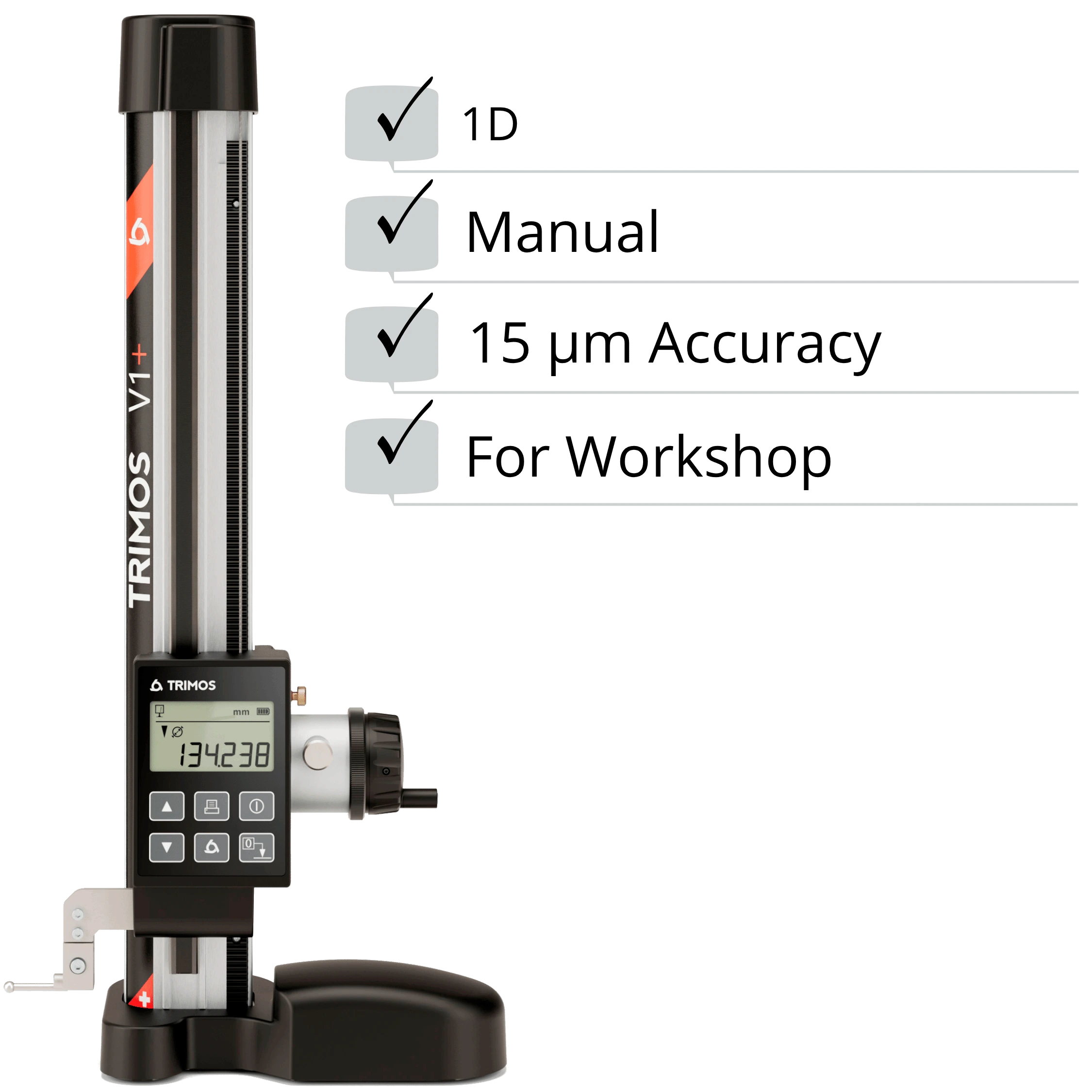

Trimos V1 and V1+ – entry-level height gauges
Applications
For workshops moving from traditional height scribers to electronic height measurement. V1 is designed for one-directional measurements and marking – simple and robust. V1+ additionally measures in both directions without extra accessories, measures internal and external diameters, and has a fine-adjustment mechanism and a constant measuring force – this increases accuracy and repeatability.
Key features
- Robust and easily portable
- Clear, simple user interface
- Counterweight for convenient operation
- Fast and smooth carriage movement
- Diameter measurement and measuring force control (V1+)
- RS232 interface
- 300 and 600 mm models
- Designed and manufactured in Switzerland
Technical data
| Parameter | V1 300 | V1 600 | V1+ 300 | V1+ 600 |
|---|---|---|---|---|
| Measuring range | 306 mm | 611 mm | 306 mm | 611 mm |
| Maximum permissible error (BMPE) | 0.018 mm | 0.030 mm | 0.015 mm | 0.025 mm |
| Repeatability (2s) | 0.010 mm | 0.010 mm | 0.005 mm (Ø: 0.01 mm) | 0.005 mm (Ø: 0.01 mm) |
| Resolution | 0.01 mm | 0.01 mm | 0.001 mm | 0.001 mm |
| Measuring force | – | – | 3 N | 3 N |
| Autonomy | 2000 h | 2000 h | 2000 h | 2000 h |
| Interface | RS232 | RS232 | RS232 | RS232 |
| Maximum travel speed | 1500 mm/s | 1500 mm/s | 1500 mm/s | 1500 mm/s |
| Weight (steel base) | 7 kg | 8 kg | 7 kg | 8 kg |
| Weight (granite base) | – | – | 13.4 kg | 15 kg |
Values determined according to ISO 13225 with the standard probe tip TA-MI-121. Repeatability (RMPE) – 2 standard deviations (2s) from 20 height measurements.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
