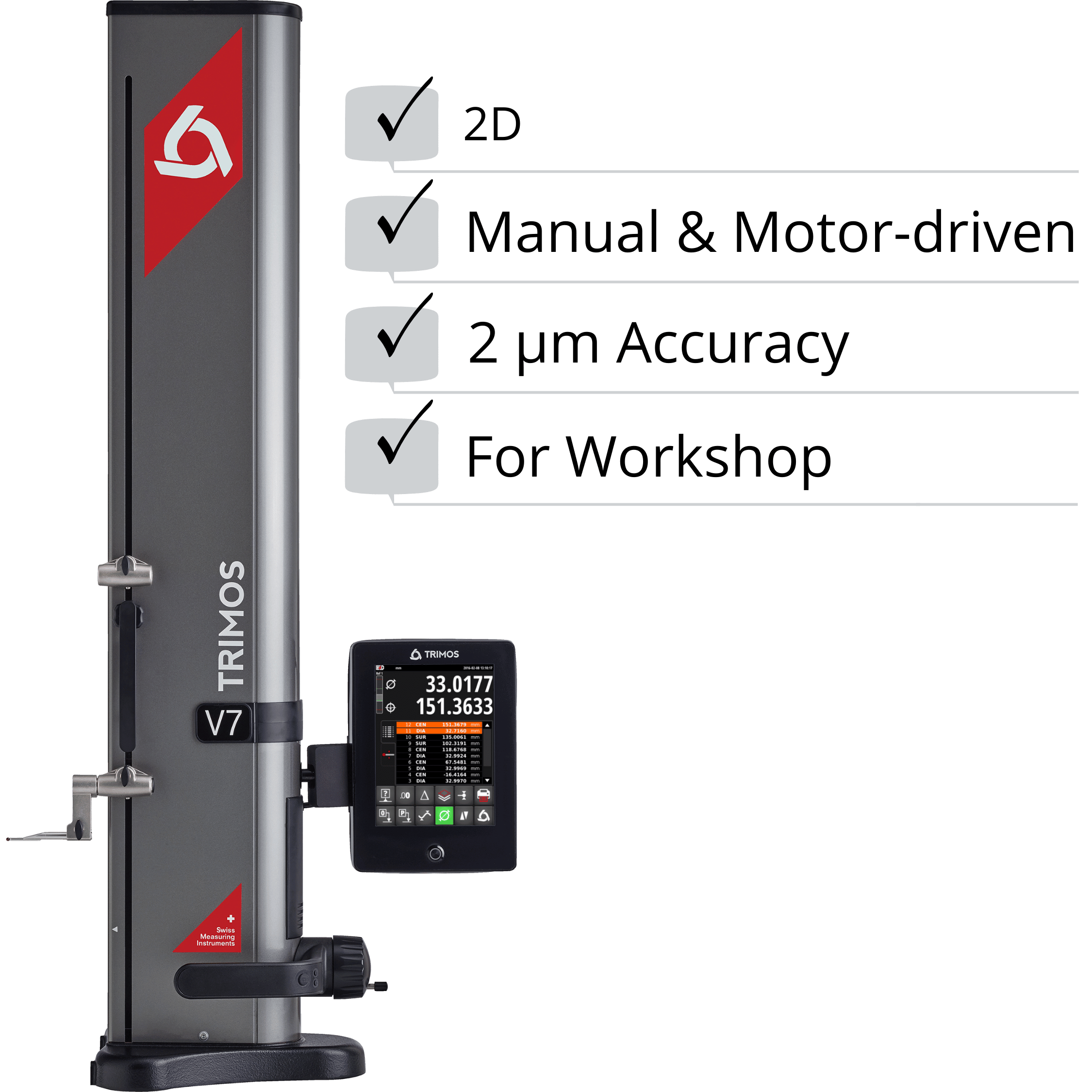

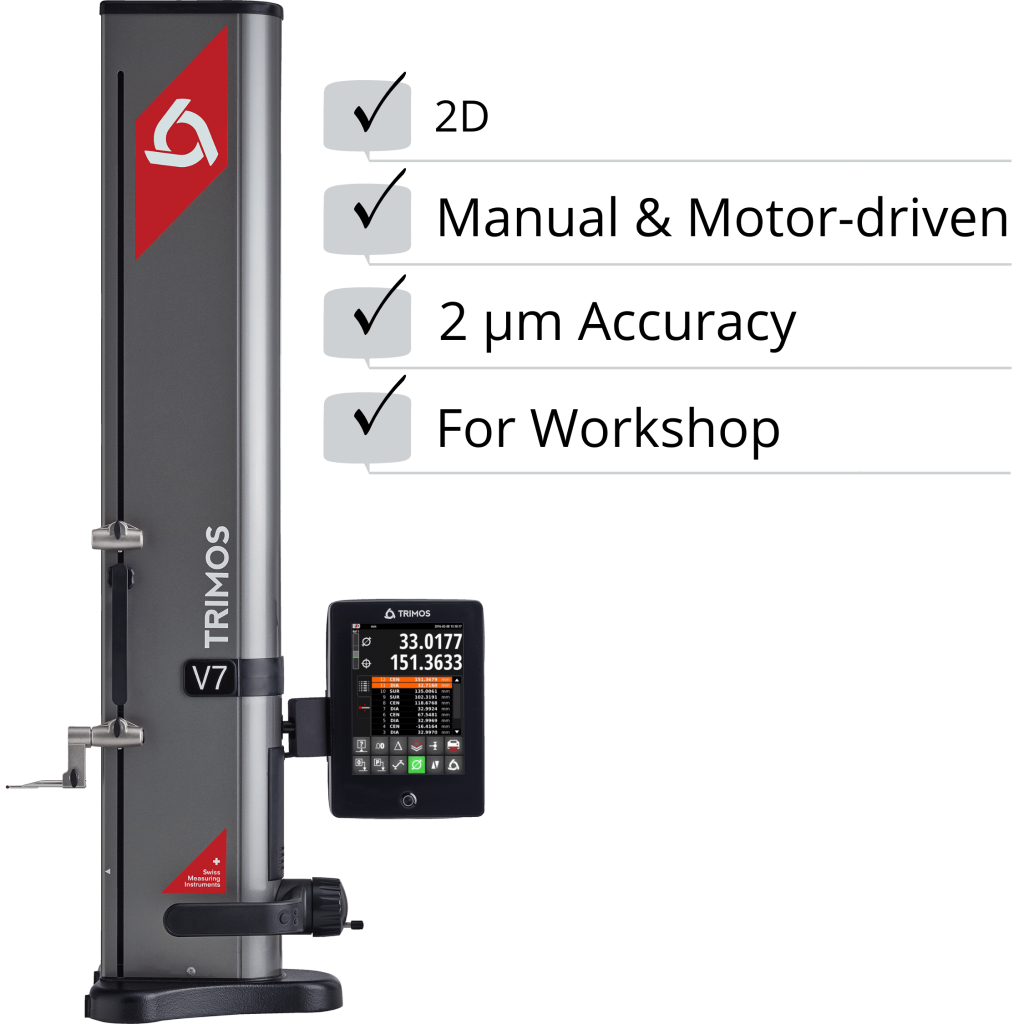

Trimos V7 – height gauge with touchscreen and 2D measurements
Applications
For shop floors and quality laboratories where the height gauge is also used for more complex measurements: 2D coordinates, repeated measuring programs, statistical analysis of results. The touchscreen shows only the functions needed, so even complex tasks become simple and productivity increases. Lateral probe holders, proven over decades, allow various probes up to 400 mm long to be used.
Key features
- Measuring ranges 400–1800 mm (with extension – up to 2122 mm)
- Simple graphical touchscreen interface
- 2D measurements, programming, statistics
- Manual or motorised carriage drive
- Electronically adjustable measuring force, air cushion
- All adjustments without tools, wide range of accessories
- USB and RS232, wireless data transfer (optional)
Technical data
| Parameter | V7 400 | V7 700 | V7 1100 | V7 1800 |
|---|---|---|---|---|
| Measuring range | 407 mm | 711 mm | 1110 mm | 1810 mm |
| Range with extension | 719 mm | 1023 mm | 1422 mm | 2122 mm |
| Maximum permissible error (BMPE) | 2 + L/400 µm | 2 + L/400 µm | 2 + L/400 µm | 2.5 + L/300 µm |
| Repeatability (2s) | 1 µm (Ø: 2 µm) | 1 µm (Ø: 2 µm) | 1 µm (Ø: 2 µm) | 1 µm (Ø: 2 µm) |
| Perpendicularity deviation (SMPE) | 5 µm | 8 µm | 11 µm | 25 µm |
| Resolution | 0.0001 mm | 0.0001 mm | 0.0001 mm | 0.0001 mm |
| Battery life | 12 h | 12 h | 12 h | 12 h |
| Weight | 22 kg | 25 kg | 34 kg | 41 kg |
Measuring force 0.75–1.5 N. L – measured length, mm. Values according to ISO 13225 with standard probe TA-MI-101.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
