Karl Deutsch ECHOMETER 1077 Data – high-accuracy A-scan thickness gauge
Applications
For precision tube production, car body stampings and laboratories that need uncertainty at the 0.01 mm level and an A-scan display. Works with single- and dual-element probes, measures through coatings and on multi-layer substrates; a low-frequency version is available for plastics and glass fibre.
Key features

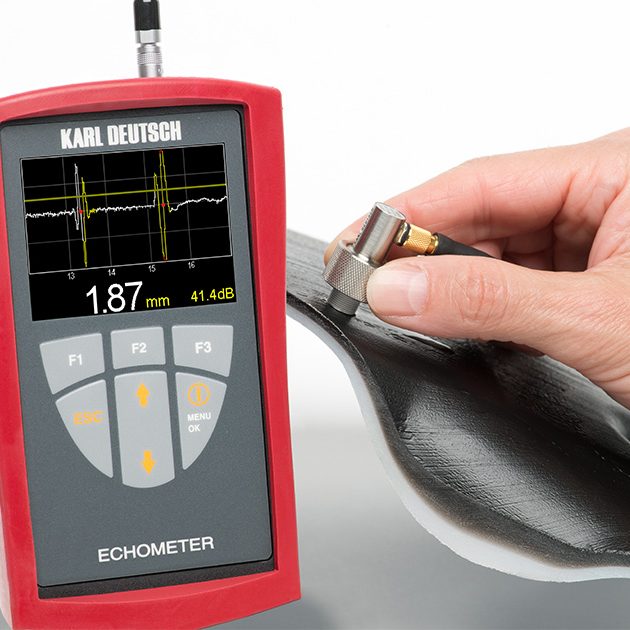

- Colour A-scan display 320 × 240 px, individual gate selection
- Zero-crossing measurement, uncertainty down to 0.01 mm
- Manual, automatic and time-of-flight-dependent gain for up to the first 4 echoes
- Memory for 20 configurations, limit value monitoring, statistics
- Automatic probe recognition by frequency spectrum; broadband probes from other manufacturers are also suitable
- Rack and modular versions for automated lines
Models
1077.020 Data; 1077.998 LF Data (low frequency – for plastics, glass fibre); 1077.090 shortened housing without power supply for automation; 1077.851 19” rack; 1077.801 19” module; 1077.802 19” module LF
Technical data
- Measuring range: 0.25–400 mm (depending on probe, material, mode)
- Uncertainty: down to 0.01 mm; resolution 0.1 / 0.01 / 0.001 mm
- Sound velocity: 100–19,999 m/s; units mm, inch, m/s, inch/µs, µs
- Modes: TP-BE and BE-BE (through coatings up to ~4 mm)
- Display modes: live, average, minimum, difference, relative
- IP54 housing
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de, karldeutsch.de
