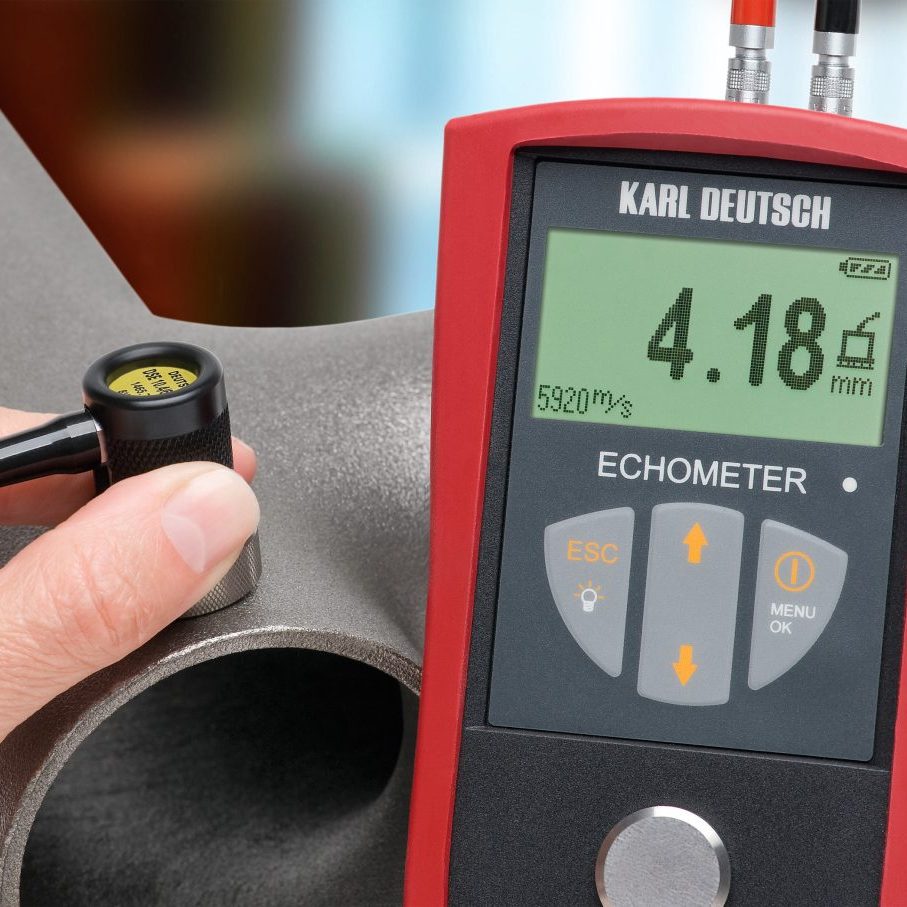

Karl Deutsch ECHOMETER 1076 Basic – ultrasonic wall thickness gauge
Applications
Basic ultrasonic thickness gauge for shop-floor quality control and for inspecting tanks and pipelines that may be corroded from the inside. Measures wall thickness and sound velocity in all materials. Suitable when a reliable instrument without data logging is needed.
Key features
- Two instruments in one – thickness and sound velocity measurement
- Automatic recognition of the connected probe and sensitivity compensation
- Clear text menu, large backlit graphic display
- Limit value monitoring
- Splash-proof IP54 housing, supplied in a sturdy case
Models
1076.001 (Basic)
Technical data
- Thickness range: 0.5–400 mm (depends on probe, structure, shape, surface)
- Sound velocity: 100–19,999 m/s
- Resolution: switchable 0.1 / 0.01; units mm / inch
- Probes (TR type): standard ~1.2–250 mm; high-resolution 0.5–25 mm; low-frequency up to 400 mm
- Housing: IP54; dimensions 13.1 × 8.1 × 3.2 cm (with rubber protective cover)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de, karldeutsch.de
