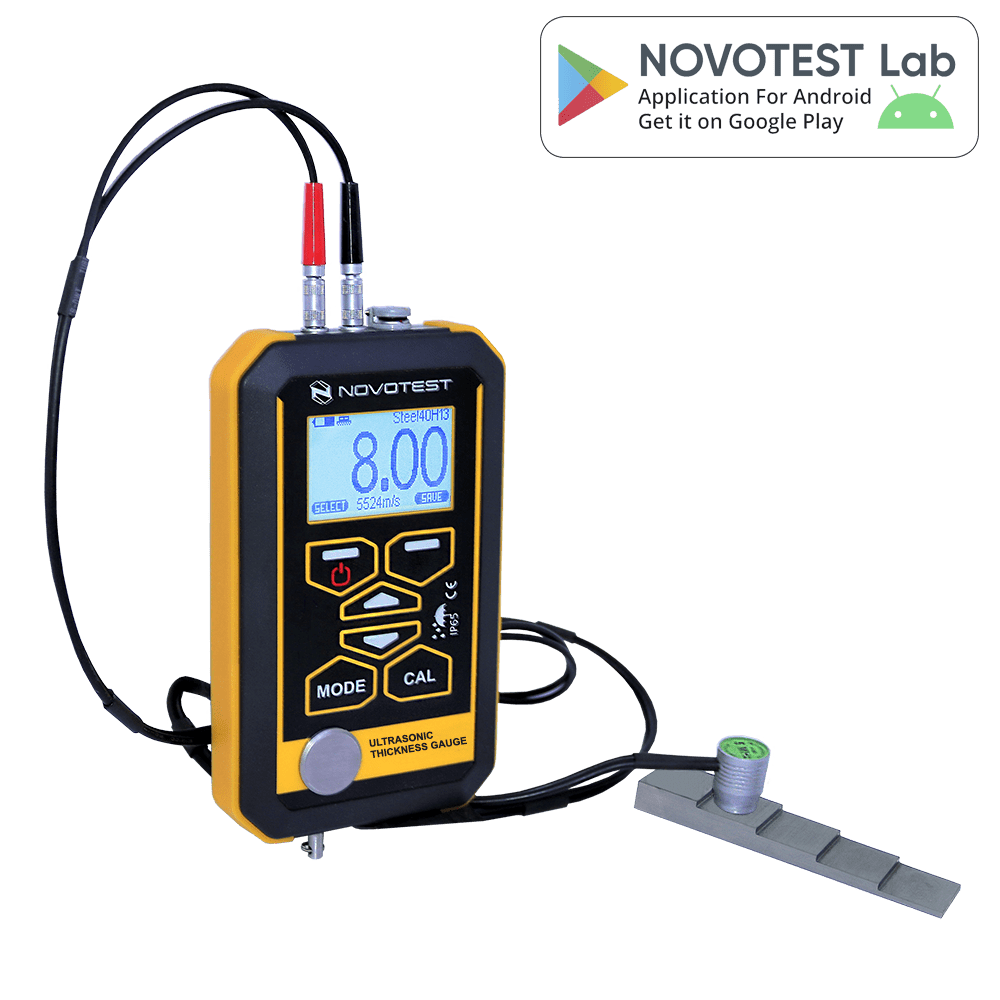

NOVOTEST UT-1M-IP – thickness gauge in an IP65 housing
Applications
For field and shipbuilding inspections where the instrument is used in rain, dust or humid environments.
Key features
- IP65 as standard, IP67 option (immersion 1 m, 30 min)
- Up to 200 h of continuous operation, charging via USB 5 V
- B-Scan, Control, Echo-Echo through coating
- Probes from 10 to 1.25 MHz
Models
UT-1M-IP; UT-1M-IP (Lab)
Technical data
- Measuring range: 0.4–1500 mm depending on probe
- Resolution: 0.01 mm; accuracy ±(0.01T + 0.05) mm
- Velocity range: 1000–17000 m/s
- Protection: IP65 (IP67 option)
- Power supply: 3 × AA, up to 200 h
Standards
ASTM E797, EN 14127, EN 15317
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz
