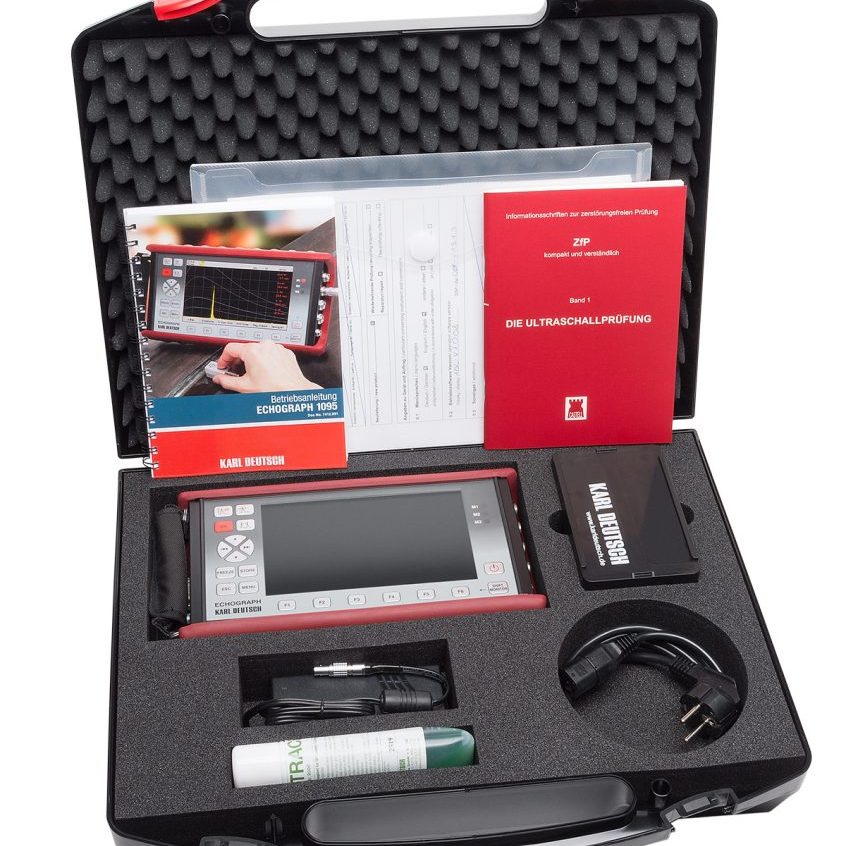

Karl Deutsch ECHOGRAPH 1095 – handheld ultrasonic flaw detector
Applications
For manual ultrasonic testing of welds, castings, forgings and rolled products on the shop floor and in the field. A wizard helps less experienced operators set up the probe and instrument and evaluate flaw size.
Key features
- 7” TFT 800 × 480 display with automatic brightness and wide viewing angle
- 3 amplitude / time-of-flight monitors with indicator lamps
- DGS (with KD TR probes, FBH equivalent), DAC up to 16 points, TCG, AWS, JIS
- Backwall echo attenuation with separate gain, evaluation on curved surfaces
- Screenshots in BMP and CSV series to an 8 GB SD card; updates via SD
- IP65 metal housing, anti-reflective glass, rubber cover, Li-ion battery
Models
1095.020 Basic; 1095.030 DAC/TCG/AWS; 1095.040 DGS/DAC/TCG; 1095.050 DGS/DAC/TCG/AWS/JIS. Modules: 1910.502 matrix memory, B-scan, L-scan and TOFD; 1910.503 digital/analogue I/O; 1910.504 time base extension up to 50 m (steel) for the Basic version
Technical data
- Pulse repetition frequency: up to 5000 Hz
- Square-wave pulser, pulse width automatic according to probe frequency or manual
- Threshold curves: up to 6 (DGS and DAC)
- Weight: 2 kg; dimensions 138 × 249 × 52 mm (149 × 262 × 54 mm with protection)
- Protection: IP65
- Thickness measurement by zero crossing in RF mode, averaging, min/max
Standards
AWS, JIS evaluation procedures
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de
