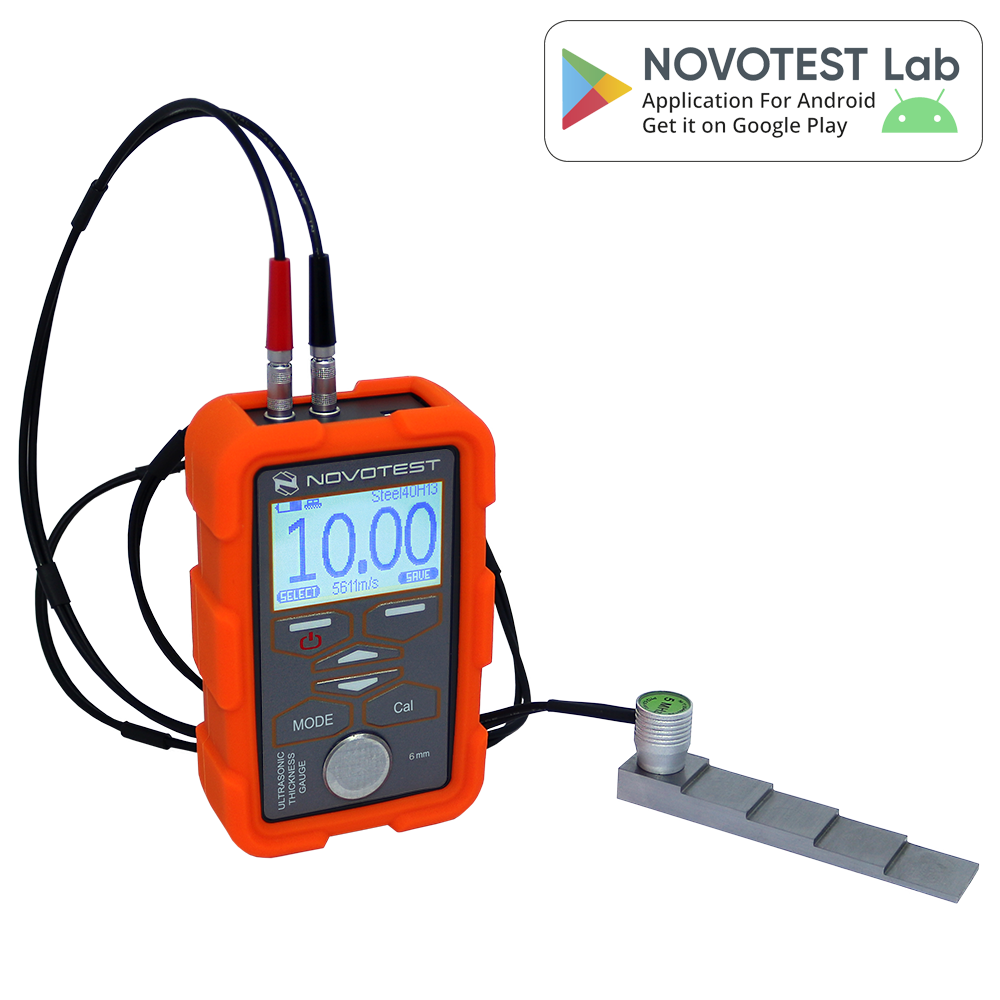

NOVOTEST UT-1M – ultrasonic thickness gauge
Applications
For one-sided wall thickness inspection of pipelines, tanks and structures; Echo-Echo mode allows measurement through paint coatings without removing them.
Key features
- Range 0.4–1500 mm depending on probe (10, 5, 2.5, 2, 1.25 MHz)
- Normal, B-Scan, Control modes; Echo-Echo through coating
- Velocity range 1000–17000 m/s, probes from other manufacturers
- 2 × AA, ~25 h; backlit graphic display
- Lab version with the NOVOTEST Lab app
Models
UT-1M; UT-1M (Lab)
Technical data
- Measuring range (steel): 0.4–1500 mm depending on probe
- Resolution: 0.01 mm; accuracy ±(0.01T + 0.05) mm (0.8–300 mm)
- Velocity range: 1000–17000 m/s
- Power supply: 2 × AA, ~25 h
Standards
ASTM E797, EN 14127, EN 15317
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz
