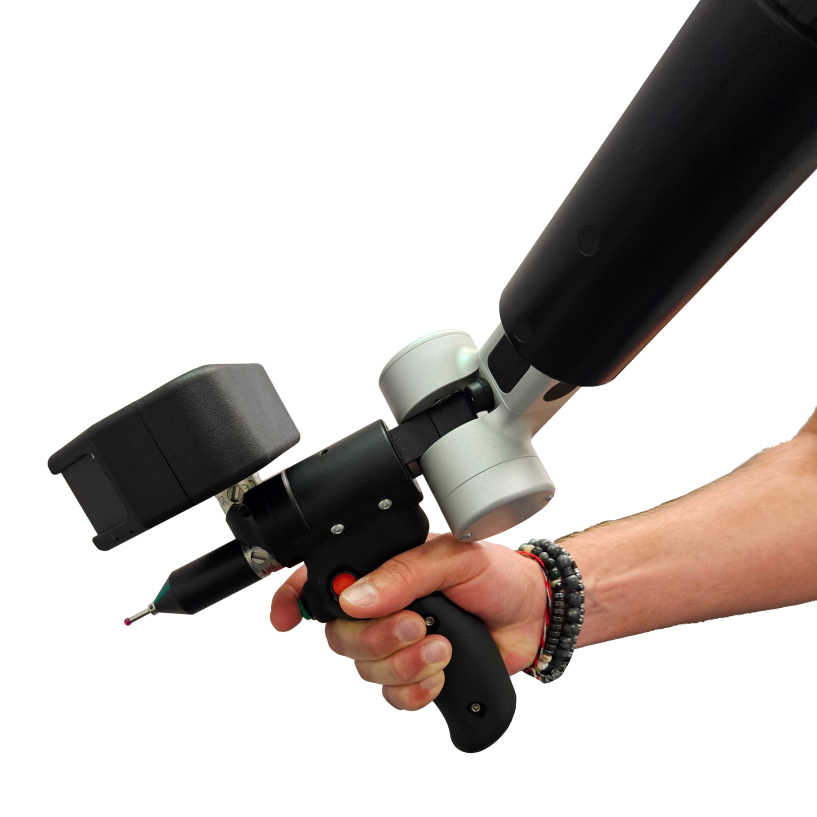

Trimos ScanSurf 80 – laser scanner for measuring arm
Applications
For scanning measurements and reverse engineering with the Trimos A6 measuring arm. The scanner provides high resolution and stability at high speed (up to 6 kHz), 2048 points per profile and high resistance to ambient light. Blue laser technology and a line length of up to 110 mm suit almost any surface. The contact probe is mounted on an additional Autojoint connection – there is no need to swap the probe for the scanner and vice versa.
Key features
- Compatible with the 7-axis A6 arm
- Resistant to shock and vibration
- Lightweight and compact
- Renishaw Autojoint connection
- Laser pointer
- Good price-to-accuracy ratio
- Compatible with third-party software
Technical data
| Parameter | ScanSurf 80 |
|---|---|
| Measuring range X | 50–110 mm |
| Working range Z | 83–213 mm |
| Maximum point acquisition rate | 350,000 points/s |
| Points per line | 2048 |
| Resolution X | 26–55 µm |
| Resolution Z | 3.2–14 µm |
| Linear accuracy | 32.5 µm |
| Laser | blue (405 nm), class 2M |
| Connectivity | Ethernet TCP/IP |
| Protection | IP67 |
| Operating temperature | 0…+45 °C |
| Dimensions / weight | 133 × 93 × 38 mm / 0.45 kg |
| Software | PolyWorks|Inspector™ and PolyWorks|Modeler™ |
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
