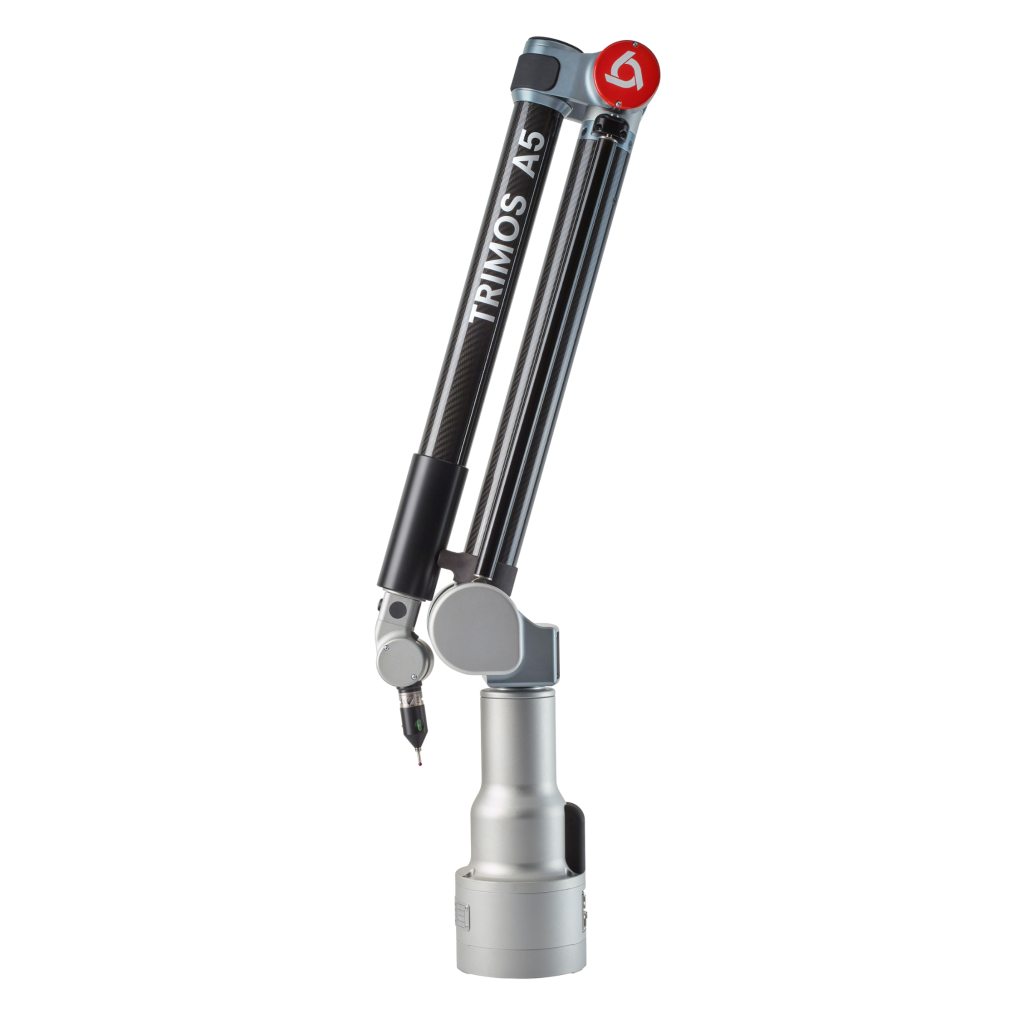

Trimos A5 – 6-axis portable measuring arm up to 9 m
Applications
For quality control and inspection of large and heavy parts: instead of transporting the part to the laboratory, the arm is set up next to it and measurements are carried out quickly and flexibly. The A5 is a series of 6-axis arms with the widest measuring range on the market – from 1.8 to 9 m. The design adapts to any environment and is compatible with many mounting fixtures, while a lateral spring system balances the arm so it does not need to be held while working.
Key features
- Measuring ranges from 1.8 to 9 m
- Electromagnetic brake to lock the arm
- Lateral spring balancing system
- Convenient rotating handle control, interchangeable connection
- Integrated Bluetooth, USB connection
- Battery operation – more than 8 h; mounting base – optional
Models
| Model | Range | Axes | Volumetric accuracy | Weight |
|---|---|---|---|---|
| A5 – 1800 | 1.8 m | 6 | 0.023 mm | 8.4 kg |
| A5 – 2500 | 2.5 m | 6 | 0.030 mm | 8.9 kg |
| A5 – 3200 | 3.2 m | 6 | 0.042 mm | 9.3 kg |
| A5 – 4000 | 4.0 m | 6 | 0.057 mm | 10 kg |
| A5 – 5000 | 5.0 m | 6 | 0.065 mm | 12.5 kg |
| A5 – 7000 | 7.0 m | 6 | 0.080 mm | 14 kg |
| A5 – 9000 | 9.0 m | 6 | 0.150 mm | 16.5 kg |
Technical data
- Operating temperature +5…+40 °C, relative humidity up to 90 % non-condensing
- Power supply 110–220 V / 50–60 Hz; battery autonomy > 8 h
- Protection class IP54; CE
- Connectivity: Bluetooth and USB
- Certification: ISO 10360-12 up to 3.2 m, larger sizes – ISO 10360-2
- Accuracy values are given at 2σ and are indicative
Trimos also offers the more compact A3 and A6 series arms, as well as the ScanSurf laser scanner – we will select the right option for your parts.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
