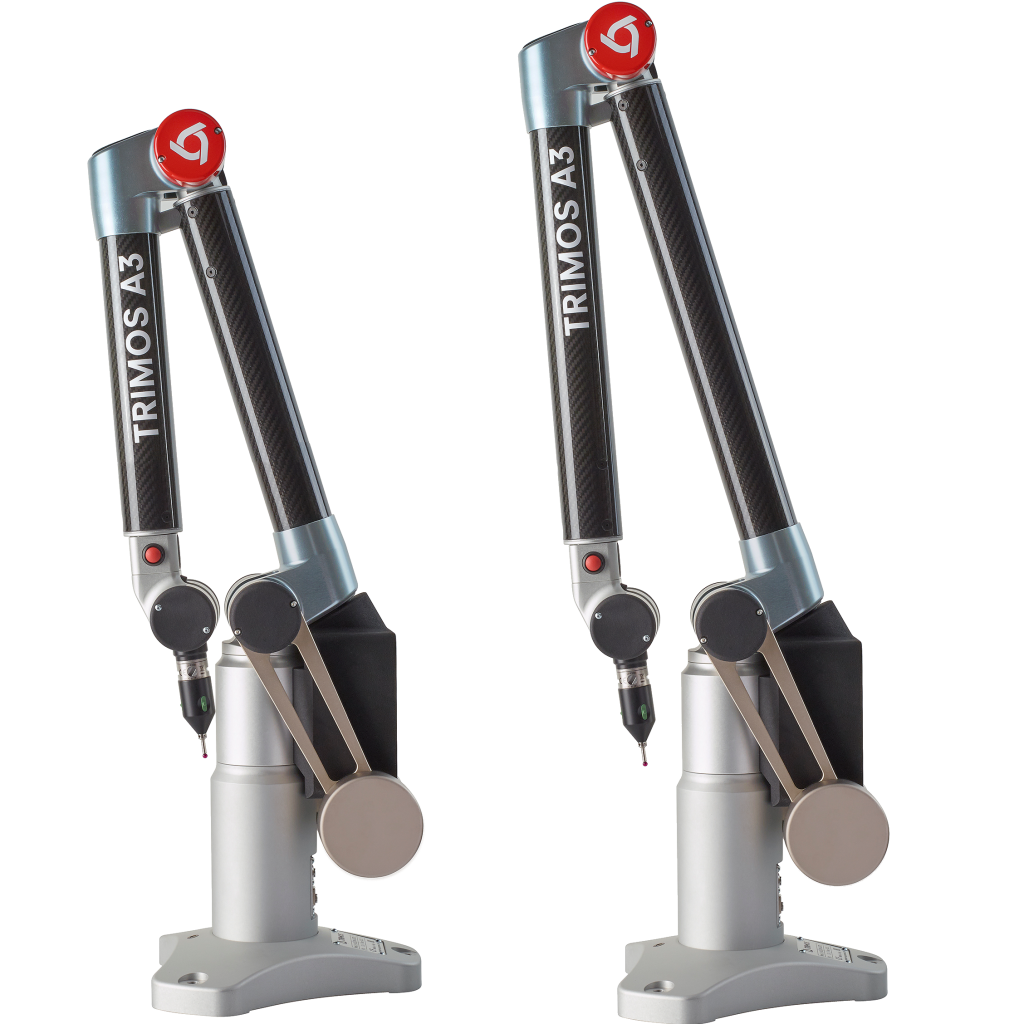

Trimos A3 – compact 6-axis portable measuring arm
Applications
For measuring parts where they are manufactured or assembled – on the shop floor, at the machine or at the customer’s site. A3 is a self-contained series of portable measuring arms in the Trimos A line; thanks to its small size it can be carried anywhere without special preparation. The 6-axis arm is made with 1.3 and 1.8 m measuring ranges; carbon fibre tubes and an aluminium base give a stable and lightweight structure, and the counterbalance gives comfortable handling.
Key features
- The most accurate Trimos arm series
- Highly portable, no special preparation needed
- Autonomy thanks to integrated wireless connectivity
- Fixed or interchangeable probe
- Fixed counterbalance for stable, long-term balance
- Bluetooth and USB connectivity
- Buttons on the probe – for more sensitive measurement
Technical data
| Model | Measuring range | Axes | Accuracy* | Weight |
|---|---|---|---|---|
| A3 – 1300 | 1.3 m | 6 | 0.016 mm | 9.5 kg |
| A3 – 1800 | 1.8 m | 6 | 0.020 mm | 10.4 kg |
* Values given with 2σ uncertainty. Operating temperature +5…+40 °C, relative humidity up to 90 % non-condensing, IP54, power supply 110–220 V / 50–60 Hz, battery life >8 h. Certification: ISO 10360-12 up to 3.2 m, ISO 10360-2 for larger.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
