Trimos A6 – 7-axis measuring arm for laser scanning
Applications

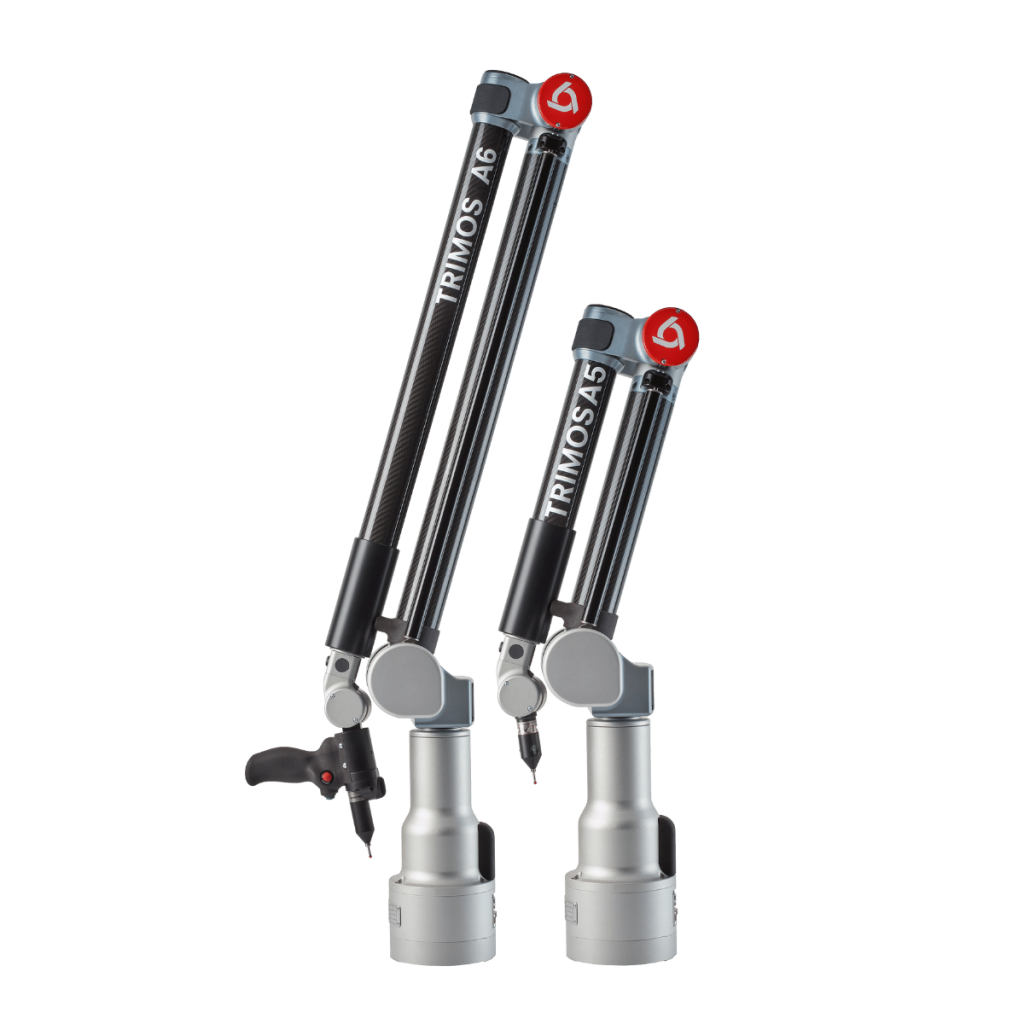

For point cloud inspection, comparison with CAD and reverse engineering. The A6 is a 7-axis arm used together with the ScanSurf laser scanner. The design and measuring ranges are the same as for the A5, but the probe has a pistol grip with integrated buttons for more convenient scanning. Contact probing and scanning can be carried out at the same time.
Key features
- Measuring ranges up to 9000 mm
- 7-axis arm
- Ergonomic pistol grip
- Interchangeable Autojoint probe connection
- Simultaneous contact measurement and scanning
- Ethernet, Bluetooth and USB connectivity
Technical data
| Model | Range | Volumetric accuracy | Accuracy with ScanSurf 80 | Weight |
|---|---|---|---|---|
| A6 – 1800 | 1.8 m | 0.031 mm | 0.104 mm | 8.9 kg |
| A6 – 2500 | 2.5 m | 0.040 mm | 0.106 mm | 9.4 kg |
| A6 – 3200 | 3.2 m | 0.052 mm | 0.110 mm | 9.8 kg |
| A6 – 4000 | 4.0 m | 0.069 mm | 0.115 mm | 10.5 kg |
| A6 – 5000 | 5.0 m | 0.075 mm | 0.125 mm | 13.5 kg |
| A6 – 7000 | 7.0 m | 0.090 mm | 0.135 mm | 15 kg |
| A6 – 9000 | 9.0 m | 0.170 mm | 0.197 mm | 17.5 kg |
Operating temperature +5…+40 °C, relative humidity up to 90 % non-condensing, IP54, power supply 110–220 V / 50–60 Hz, battery autonomy >8 h. Certification: ISO 10360-12 up to 3.2 m, ISO 10360-2 for larger models.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
