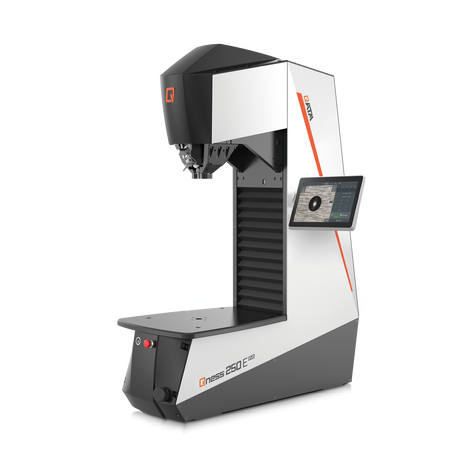

QATM Qness 250 / 750 / 3000 E EVO – macrohardness tester for large specimens
Applications
For foundries, forges and heavy industry companies measuring large and heavy parts in the laboratory or in a rough production environment. Motorised head movement and automatic clamping force allow large workpieces to be tested safely.
Key features
- Fixed table 584 × 450 mm and test height 510 mm (higher frame on request)
- Electric height adjustment by asynchronous motor, 8 mm/s or up to 17 mm/s with two-hand safety
- Clamping force up to 3500 kg, automatically higher than the test force; workpiece detection slows down the approach
- 8-position tool changer, swivelling clamping device (manual or motorised)
- XLED Brinell objectives, 5 MP Ethernet camera, 12” display
- Suitable for the laboratory and rough production environments; IoT updates
Models
Qness 250 E EVO (1–250 kg); Qness 750 E EVO (0.3–750 kg); Qness 3000 E EVO (0.3–3000 kg)
Technical data
- Test force: 1–250 kg (9.81–2450 N) / 0.3–750 kg (2.94–7358 N) / 0.3–3000 kg (2.94–29430 N)
- Test height / throat depth: 510 mm / 320 mm; table 584 × 450 mm; max. specimen weight “unlimited”
- Clamping force: up to 3500 kg; instrument weight 500 kg; power ~1230 W
- Scales: HBW 1/1 – HBW 10/3000 (depending on model); HRA–HRV, HR15/30/45; HV 0.3–100; HK 0.3–2
- Objectives: XLED 1, XLED 2, XLED 5, 5x–100x; 5 MP Ethernet camera up to 270 FPS
- Display / software: 12” capacitive, Qpix T2 (option Qpix Control2 M), Windows 11 IoT, 128 GB SSD
- Interfaces: 2 × USB 3.0, 2 × USB 2.0, RJ45, RS232, DisplayPort
Standards
DIN EN ISO 6506 / ASTM E-10; DIN EN ISO 6508 / ASTM E-18; DIN EN ISO 6507 / ASTM E-92 / E-384; DIN EN ISO 4545; DIN EN ISO 2039; DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com
