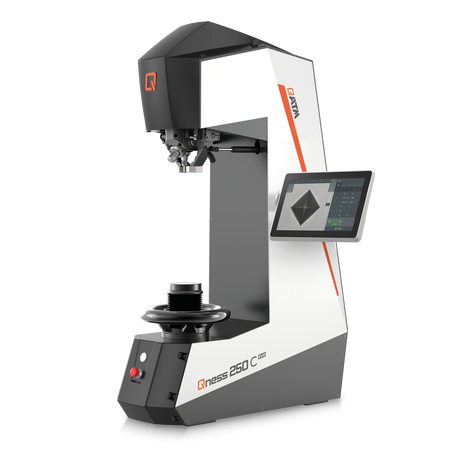

QATM Qness 250 / 750 / 3000 C / CS EVO – macro hardness tester for small samples

Applications

For foundries, forges, heat treatment and machining companies that need all methods over a wide load range and Brinell HBW 10/3000 for massive parts. C version – for samples up to 395 mm high, CS – up to 175 mm.

Key features

• Three force classes: 250, 750 and 3000 kg; loads from 0.3 kg
• 8-position tool changer (15° rotation axis) or 2 positions as standard
• Tool-free indenter change, swivelling clamping device (manual or motorised)
• XLED Brinell objectives – repeatable indentation measurement in different materials
• New optics for a 0.1–8 mm field of view, 5 MP Ethernet camera up to 270 FPS
• Shorter cycles, quieter operation, IoT remote maintenance and updates

Models

Qness 250 C EVO (1–250 kg); Qness 750 C EVO (0.3–750 kg); Qness 3000 C EVO (0.3–3000 kg); CS version

Technical data

• Test force: 1–250 kg (9.81–2450 N) / 0.3–750 kg (2.94–7358 N) / 0.3–3000 kg (2.94–29430 N)
• Scales: HBW 1/1 – HBW 10/3000 (depending on model); HRA–HRV, HR15/30/45 N/T/W/X/Y; HV 0.3–100; HK 0.3–2; plastics 49.03–961 N
• Test height / throat depth (C): 395 mm / 220 mm; table Ø 100 mm; max. sample weight “unlimited”
• Instrument weight: 300 kg (C); power ~480 W
• Objectives: XLED 1, XLED 2, XLED 5, 5x–100x; field of view 0.113 × 0.084 – 7.98 × 5.97 mm
• Display / software: 12” capacitive, Qpix T2 (option Qpix Control2 M), Windows 11 IoT, 128 GB SSD
• Interfaces: 2 × USB 3.0, 2 × USB 2.0, RJ45, RS232, DisplayPort

Standards

DIN EN ISO 6506 / ASTM E-10; DIN EN ISO 6508 / ASTM E-18; DIN EN ISO 6507 / ASTM E-92 / E-384; DIN EN ISO 4545; DIN EN ISO 2039; DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: qatm.com
