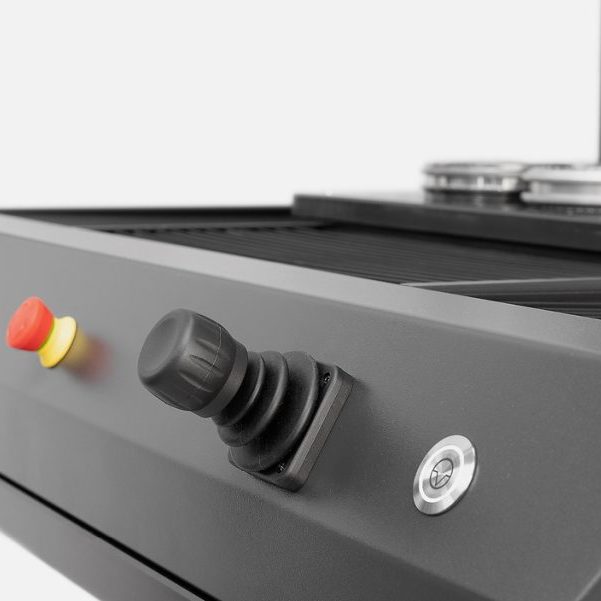

QATM Qness 250 / 750 / 3000 A+ EVO – fully automatic macro hardness tester
Applications
For laboratories and manufacturers that need automatic test series on samples of different heights, Jominy samples and large batches without an operator. Controlled from an external PC with Qpix Control2.
Key features
- Automatic XYZ travel for samples of different heights; CAS collision avoidance
- Motorised table 450 × 297 mm, travel X 460 / Y 350 mm
- Clamping force up to 3200 kg, fixed or swivelling clamping device
- 5 MP sample camera (A+), switchable magnets and sample holder recognition
- Options: Jominy module (8-position holder), tube testing, carbon testing according to DIN 51917
- XLED Brinell objectives, Ethernet camera, IoT platform
Models
Qness 250 A+ (1–250 kg); Qness 750 A+ (0.3–750 kg); Qness 3000 A+ (0.3–3000 kg); A version without sample camera –
Technical data
- Test force: 1–250 kg (9.81–2450 N) / 0.3–750 kg (2.94–7358 N) / 0.3–3000 kg (2.94–29430 N)
- Test height / throat depth: 362 mm / 320 mm
- Table: motorised 450 × 297 mm; travel X 460 / Y 350 mm; max. sample weight “unlimited”
- Clamping force: up to 3200 kg; instrument weight 695 kg; power ~1680 W
- Software: Qpix Control2 (external PC); export PDF, XML, CSV, Excel, OPC UA; 1 × RJ45
Standards
DIN EN ISO 6506 / ASTM E-10; DIN EN ISO 6508 / ASTM E-18; DIN EN ISO 6507 / ASTM E-384 / E-92; DIN EN ISO 4545; DIN 51917 (carbon, option); DIN EN ISO 18265, DIN EN ISO 50150, ASTM E-140
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
