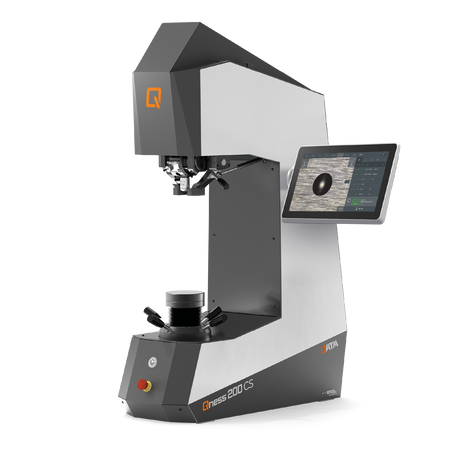

QATM Qness 200 CS – universal macro hardness tester for small parts

Applications

For laboratories and workshops that need all four methods in a compact instrument for small and medium-sized parts, with a direct depth measuring system for the Rockwell method and optical Vickers/Brinell evaluation.

Key features

• 4 methods in one: Rockwell, Vickers, Knoop, Brinell; loads 0.5–187.5 kg
• 5-position tool changer on a horizontal rotary axis, tool-free indenter change
• Direct depth measuring system 0.05 µm
• XLED illumination for repeatable measurement of Brinell indentations
• 12” ultra-thin capacitive display, Windows 11 IoT, 5 MP Ethernet camera
• Qconnect interfaces (PDF, XML, CSV, Excel, Q-DAS, OPC UA, LIMS, SAP), IoT remote maintenance

Models

Qness 200 CS (manual spindle); CSA(+) version with automatic 3-axis control (XY 200 × 180 mm) –

Technical data

• Test force: 0.5–187.5 kg (4.9–1839 N)
• Scales: HBW 1/1 – HBW 10/100; HRA–HRV, HR15/30/45 N/T/W/X/Y; HV 0.5–100; HK 0.5–2; plastics 49.03–961 N
• Test height / throat depth: 250 mm / 238 mm; table Ø 100 mm; max. sample weight “unlimited”
• Instrument weight: 132 kg
• Objectives: XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x; field of view 0.113 × 0.084 mm – 4.24 × 3.18 mm
• Display / software: 12” multi-touch, Qpix T2, Windows 11 IoT, 128 GB SSD
• Interfaces: 2 × USB 3.0, 2 × USB 2.0, RJ45, RS232, DisplayPort

Standards

DIN EN ISO 6506 / ASTM E-10; DIN EN ISO 6508 / ASTM E-18; DIN EN ISO 6507 / ASTM E-92 / E-384; DIN EN ISO 4545; DIN EN ISO 2039; DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: qatm.com, qatm.com
