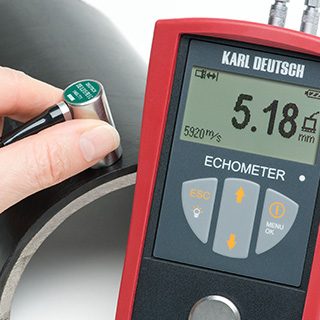

Karl Deutsch ECHOMETER 1076 TC Data – thickness measurement through coating
Applications
The top model of the 1076 family – all 1076 Data functions plus measurement through coating. For inspecting painted pipelines, tanks and structures when the coating cannot be removed or removing it is not worthwhile.
Key features
- BE-BE method: the time between successive backwall echoes is measured, so the coating does not affect the result
- Paint or plastic coatings up to ~4 mm are eliminated (often also works up to ~8 mm, depending on the material)
- Standard TP-BE mode for unpainted surfaces
- Data storage in folders, statistics, PC interface
- Automatic probe recognition, IP54
Models
1076.003 (TC Data), in a rugged case
Technical data
- Thickness range: 0.5–400 mm (depending on probe)
- Sound velocity: 100–19,999 m/s
- Coating: up to ~4 mm (BE-BE); with standard probe through coating 2–28 mm
- Resolution: 0.1 / 0.01 mm
- Probes: standard ~1.2–250 mm; high-resolution 0.5–25 mm; low-frequency up to 400 mm
- Dimensions 13.1 × 8.1 × 3.2 cm; IP54
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de, karldeutsch.de
