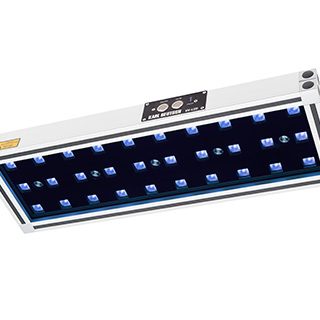

Karl Deutsch UV-LED large-area lamp 3846 – stationary UV lamp for MT and PT
Applications
For stationary use in MT and PT inspection booths and lines. Several lamps are connected in series according to the required intensity; the standard power supply unit handles up to 2 lamps, an additional one up to 4.
Key features
- 30 high-power UV LEDs, service life > 10,000 h
- UV-A strictly 365 nm, no UV-B/UV-C – no filter glass needed
- Switchable UV / white light, no measurable white light in UV mode
- Anodised aluminium housing, fanless cooling – silent, maintenance-free
- Ready for use immediately; risk group 2 according to EM 06
- Meets DGZfP requirements; certified version ASTM E3022 / Airbus AITM 6-1001 / RRES 90061
Models
3846.001 standard; 3846.102 according to ASTM E3022, Airbus AITM6-1001, RRES 90061
Technical data
- UV irradiance: ≥ ~40 W/m² (4000 µW/cm²) at 400 mm distance
- Power supply: 100–240 V, 50/60 Hz; 55 W
Standards
DGZfP EM 06 (risk group 2); ASTM E3022; Airbus AITM6-1001; Rolls-Royce RRES 90061
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de, karldeutsch.de
