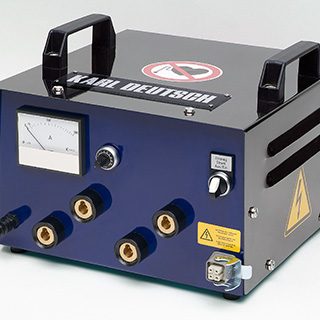

Karl Deutsch DEUTROPULS SW – portable high-current generators for MT
Applications
For mobile MT inspection of large structures, castings and forgings using the current flow method when a yoke is not sufficient. The current is fed into the part via magnetic electrodes or flexible coils; the half-wave DC version is for subsurface defects.
Key features
- Four power classes, mobile use
- Continuously adjustable current, large display with current reading
- Alternating or half-wave direct current
- Demagnetisation function in all models
- Accessories: safety foot switch, flexible cables 2.5 / 5 m (70 / 120 mm²), magnetic electrodes ø40 / ø50 mm, foldable coils
Models
SW 1000 (3454.051, AC 1000 A); SW 2000 (3454.052, AC 2000 A); SW 3000 (3454.053, AC 2890 A); SW 1000 G (3454.151, half-wave DC 1000/770 A)
Technical data
- Max. current: 1000 / 2000 / 2890 A AC; 1000/770 A HWDC
- Demagnetisation: yes
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de
