Karl Deutsch FLUXA – magnetic particle testing media

Applications

For all MT tasks – from series fluorescent inspection on stationary DEUTROFLUX lines to single-part black-and-white inspection in the field where darkening is not possible. Water-based concentrates are diluted 1:20–1:200, oil-based ones are for high flash point.

Key features

  • Fluorescent media – high contrast for the finest defects

  • Water-based HRS family without VOC, ready-to-use aerosols on site

  • Special versions for oily surfaces (HRS/SPECIAL) and highly concentrated ones (HKS/SPECIAL 1:100–1:200)

  • Red TRS – also for daylight

  • Oil-based HS-O (flash point > 65 °C) and HS-O-110 (> 100 °C)

  • Black-and-white system: BLACK-O, BLACK-W, BLACK powder, white background Models / variants (manufacturer item numbers):

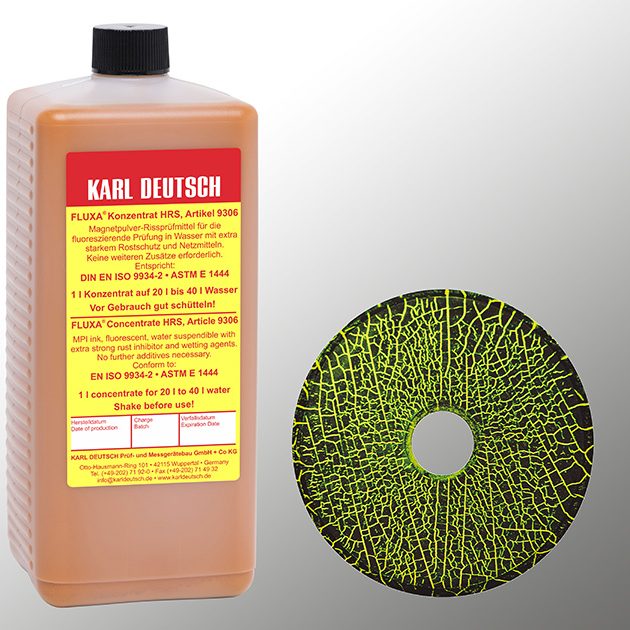

  • Fluorescent, water-based: CONCENTRATE HRS 9306.1/9306.2 (1:20–1:40); SPRAY HRS AEROSOL 9306.9; HRS/G 9356.1/9356.2; HRS/SPECIAL 9306.122/9306.22; HVP 9357.1/9357.2 (1:40–1:80); HKS/SPECIAL 9366.12 (1:100–1:200); TRS 9706.1/9706.2 (red); FGR/G 9256.1; FLUXA 140 G 9261.1/9261.2

  • Fluorescent, oil-based: CONCENTRATE HS-O 9314.1; HS-O ready-to-use 9314.9 (aerosol) / 9314.2 / 9314.25; HS-O-110 9315.2/9315.25

  • Non-fluorescent: BLACK-O ready-to-use 9014.2/9014.25; BLACK-O AEROSOL 9014.9; SUSPENSION BLACK-AMS 9014.6/9014.625; CONCENTRATE BLACK-W 9016.1; POWDER BLACK 9010.1 (5 kg); BACKGROUND PAINT WHITE 9015.1/9015.5/9015.2; UG-W 9015.100

  • Accessories: ASTM sedimentation glass 6901.001, stand 9804.002, spray bottle 1 l 6303.001

Technical data

dilution ratios and packaging according to the list above; flash point HS-O > 65 °C, HS-O-110 > 100 °C

Standards

DIN EN ISO 9934-2 (all fluorescent); the manufacturer states compliance with DIN EN ISO, AMS, ASTM, BS

What we offer

  • Selection of the instrument and configuration for your task, together with the manufacturer
  • Trial measurements of your samples in the manufacturer’s laboratory
  • Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: karldeutsch.de, karldeutsch.de
