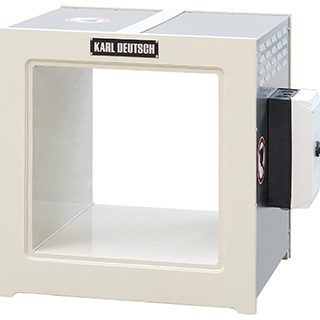

Karl Deutsch ESV / MSV demagnetising coils
Applications
For demagnetising parts outside DEUTROFLUX benches – after magnetic particle testing, before machining or assembly. With a conveyor or inclined chute – for an automated continuous process.
Key features
- Field strength at the coil centre > 20 kA/m (> 250 Oe)
- Continuous-duty design, 400 V / 50 Hz
- Six standard sizes, other sizes and rectangular shapes on request
- MSV version in a potted water-resistant housing
- Accessories: conveyors, inclined stands, low-frequency generators for special cases
Models
ESV 100 S (3601.1); ESV 150 S (3602.1); ESV 200 S (3603.1); ESV 300 S (3604.1); ESV 400 S (3605.1); ESV 500 S (3606.1); MSV versions in a water-resistant housing
Technical data
- Inner opening: 100 × 100 … 500 × 500 mm (type number = side length in mm)
- Field strength: > 20 kA/m; penetration depth of the alternating field ~2 mm
- Power supply: 400 V / 50 Hz
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: karldeutsch.de
