Foerster STATOGRAPH CM+ / CM – stationary eddy current crack testing

Applications

For automated testing of surface defects in complex parts (pistons, valves, brake discs, joints) on the production line. The CM+ has an integrated touchscreen for work at the line, the CM has status LEDs for mounting in a control cabinet; both are operated via a web interface.

Key features

• Wizard automatically selects parameters based on a reference part
• Browser access to data, statistics and settings, role-based user management
• Extended frequency range up to 10 MHz
• Advanced filtering for more accurate testing
• Industrial Ethernet / Profinet and Digital I/O for integration into the control system
• Compatible with the existing range of Foerster probes

Models

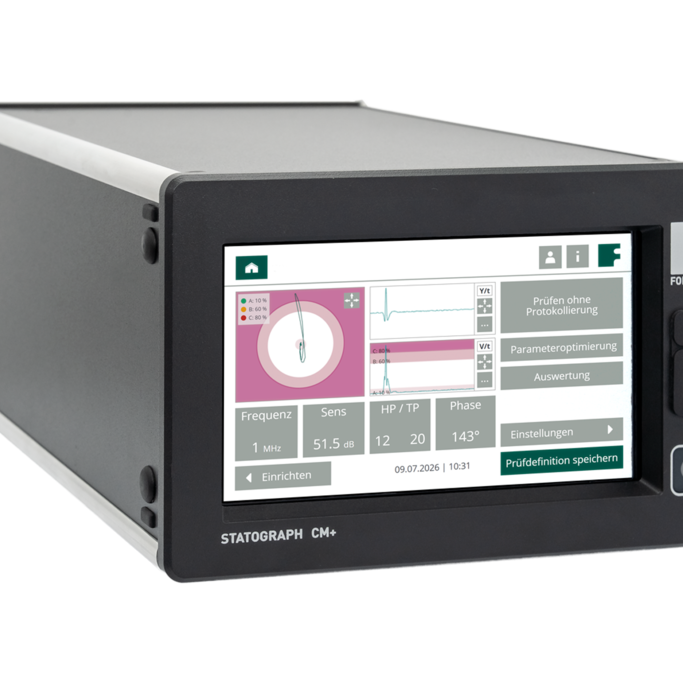

STATOGRAPH CM+ (touchscreen); STATOGRAPH CM (status LEDs, for control cabinets)

Technical data

• Excitation frequencies: 1, 3, 10, 30, 100, 300 kHz; 1, 3, 10 MHz
• Sensors: differential or absolute
• High-pass / low-pass filters: 1 Hz–56 kHz, 28 steps
• Interfaces: Industrial Ethernet (Profinet), Digital I/O
• Power supply: 85–265 V, 47–63 Hz

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: foerstergroup.com, foerstergroup.com
