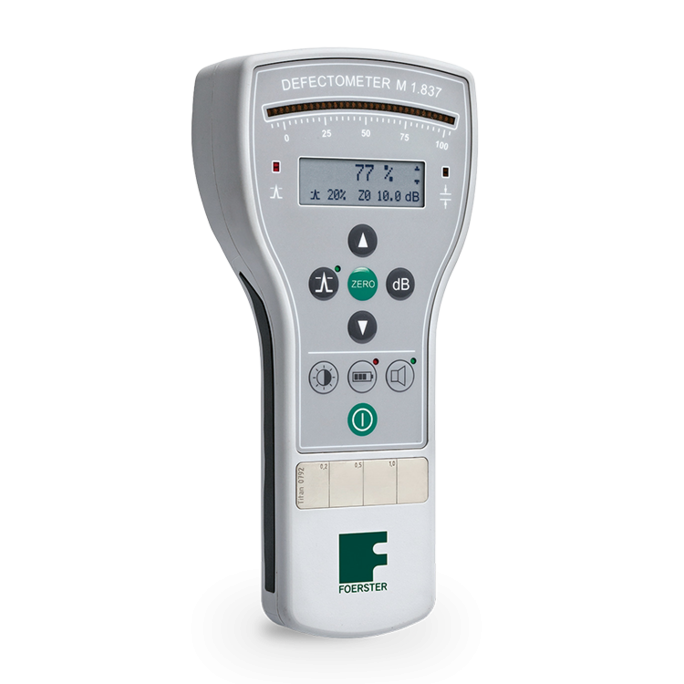

Foerster DEFECTOMETER M 1.837 – mobile eddy current flaw detector

Applications

For manual inspection of surface cracks, hardness and material sorting under any conditions – aviation maintenance, automotive parts, infrastructure structures. One-hand operated instrument with LED scale and LCD, readable both in bright sunlight and in the dark.

Key features

• Crack resolution from 20 µm
• Automatic lift-off, zero and tilt compensation, warning when the probe is lifted
• Up to 35 h of operation with lighting on, 6 × AA NiMH or standard batteries, integrated charger
• USB interface for reviewing and documenting results, PC software
• Five probe types; compatible with probes of earlier DEFECTOMETER models
• Airbus HFEC test kit (1.837.69-0038), DAkkS calibration certificates

Models

DEFECTOMETER M 1.837; accessories: bag 1.837.01-7200, holder 1.837.01-7400, PC software 1.837.01-8200; DEFECTOMETER M probes (straight, angled 90°/100°/135°, flexible, bore hole, micro, spring-loaded, high-depth; 2 MHz NFe, 4 MHz Fe/austenite)

Technical data

• Sensitivity range: 20 dB, in 0.5 dB steps
• Defect threshold: −99…+99 %, in 1 % steps; red LED and acoustic signal
• Test speed: 0–0.15 m/s
• Operating time: 35 h (NiMH); power supply 110–240 V
• Operating temperature: −10…+55 °C
• Dimensions: 81 × 178 × 42 mm; weight 400 g
• Interface: USB (serial)

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: foerstergroup.com, foerstergroup.com
