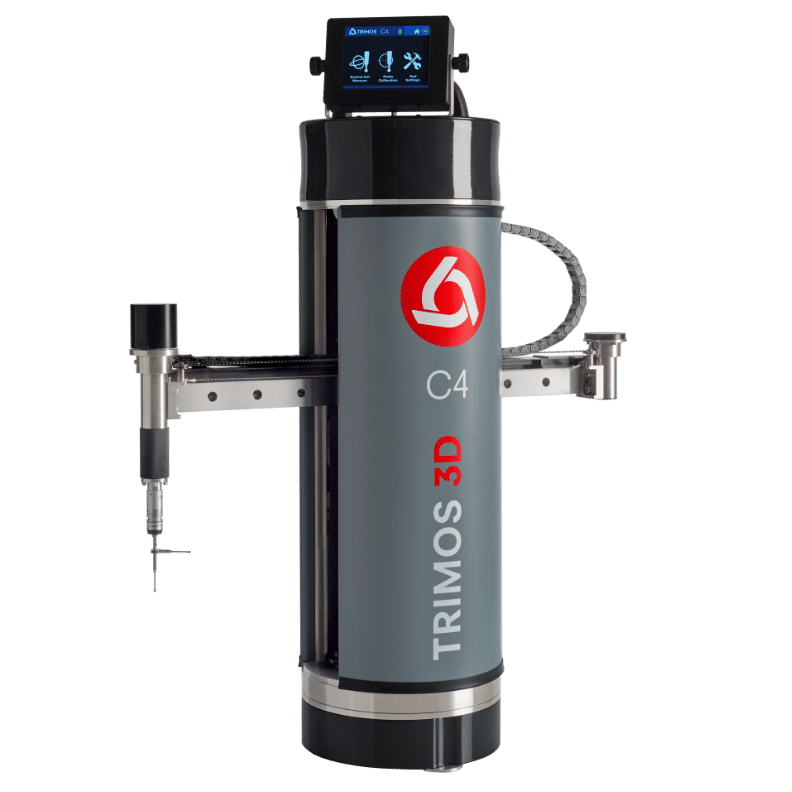

Trimos C4 – portable CNC coordinate measuring machine
Applications
For production where it is more convenient to measure the part on the spot than to take it to the measuring laboratory. The Trimos C4 is the world’s first truly portable CNC coordinate measuring machine, designed for use on the shop floor. It complements 1D/2D height gauges with three-dimensional measurements, is controlled from a laptop with Aberlink software, and is very simple to start up and set up.
Key features
- Only 13.5 kg – the machine is carried to the part and used directly in the production process
- 4-axis model, full CNC control together with manual mode
- High accuracy with the Renishaw TP20 probe
- Small footprint, no compressed air required
- Easy to use with Aberlink measuring software
- Ethernet or wireless connection
Technical data
| Parameter | Trimos C4 |
|---|---|
| Working volume | X and Y Ø 720 mm, Z 250 mm |
| MPE E | 8.0 µm |
| Travel speed | adjustable up to 150 mm/s |
| Compressed air | not required |
| Power supply | 100–240 V AC ±10 %, 50–60 Hz |
| Battery life | typically 4 h, 3 h at maximum load |
| Probe | Renishaw TP20 |
| Controller | integrated board: motion control, error mapping, I++ interface |
| Weight | 13.5 kg |
| Dimensions (W × D × H) | 420 × 172 × 620 mm |
| Operating temperature | +10…+40 °C |
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
