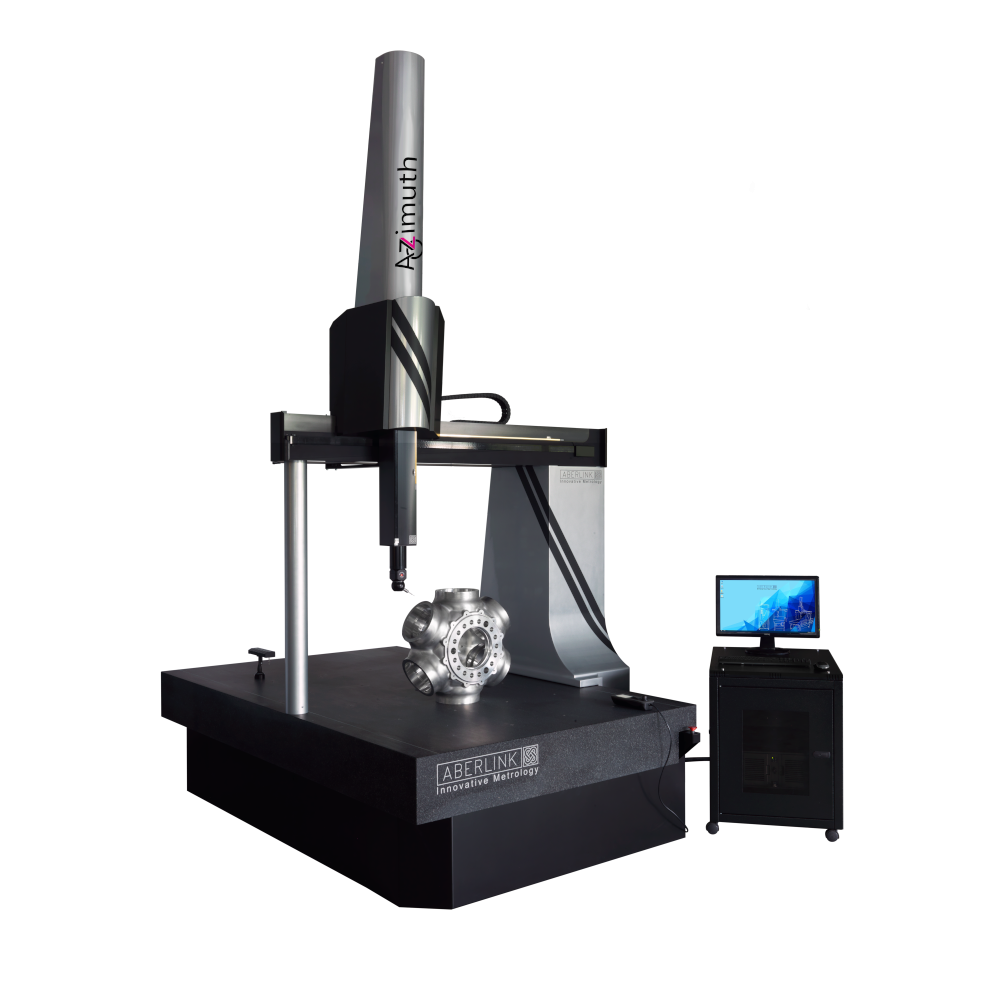

Aberlink Azimuth – large bridge-type coordinate measuring machine
Applications
For measuring large components. As CMM dimensions increase, structural stiffness without excessive weight becomes the key factor – Azimuth combines more than two decades of Aberlink experience, advanced materials and engineering solutions.
Key features
- Aberlink measuring software – learned in one day
- Y-axis travel from 2000 to 3000 mm
- Linear encoders with 0.0001 mm resolution
- Integrated drive system – uniform performance throughout the volume
- Touch-sensitive CMM joystick as standard
- Free probe change rack with motorised head upgrade
Technical data
| Parameter | Azimuth |
|---|---|
| Axis travel (X / Y / Z) | 1200 / 2000 or 3000 / 1000 mm |
| Overall dimensions (X / Y / Z) | 1940 / 3000 or 4000 / 3595 mm |
| Control / design / drive | CNC / bridge / belt |
| Volumetric accuracy* | TP20: 2.9 + L/250 µm; TP200: 2.8 + L/250 µm; SP25M: 2.6 + L/250 µm |
| Scale resolution | 0.1 µm |
| Optimum / operating temperature** | 18–22 °C / 5–45 °C |
| Table / load | granite / 1500 kg |
| Max. speed / acceleration | 600 mm/s / 600 mm/s² |
| Compressed air | 100 l/min, 7 bar |
* Maximum permissible error MPEE within the optimum temperature range. ** Installation conditions: temperature variation <1 °C/h and <2 °C/24 h, gradient <1 °C/m. L – measured length, mm.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
