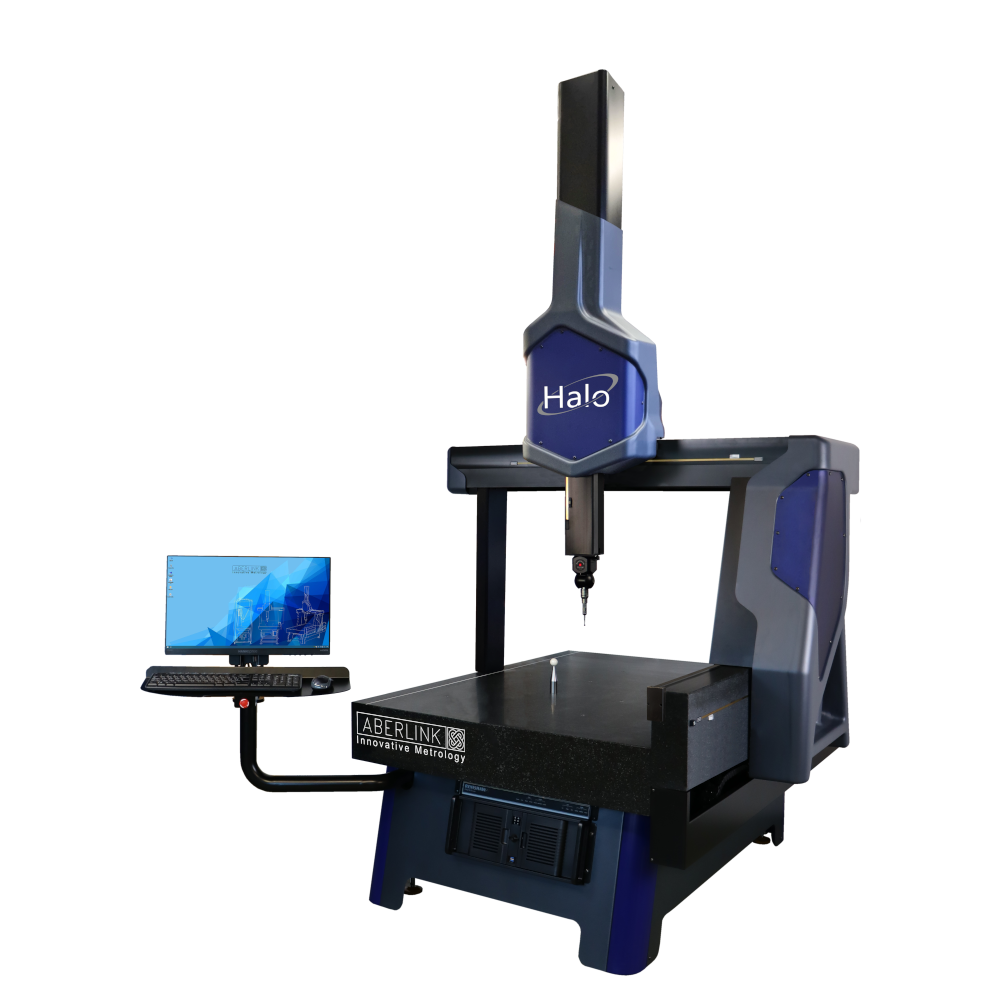

Aberlink Halo – belt-driven CNC bridge coordinate measuring machine
Applications
For measuring medium-sized parts in quality laboratories and production areas. The belt drive on the X-Y-Z axes provides smooth, reliable motion; among international CMMs, the Halo is very competitively priced.
Key features
- Robust granite table for high loads
- Laser error mapping – high accuracy
- Smooth motion suitable for contact scanning
- Intuitive Aberlink measuring software – learned in one day
- Four X-Y-Z travel configurations
- Reliable operation in production environments
- Industrial joystick as standard
- Free probe change rack with every motorised head upgrade
Technical data
| Parameter | Halo | Halo L |
|---|---|---|
| Axis travel (X / Y / Z) | 800 / 1000 or 1600 / 600 mm | 1000 / 1200 or 2000 / 800 mm |
| Overall dimensions (X / Y / Z) | 1403 / 1530 or 2130 / 2503 mm | 1603 / 1830 or 2630 / 2987–3037 mm |
| Volumetric accuracy* | TP20: 2.1 + L/250 µm; TP200: 2.0 + L/250 µm; SP25M: 1.8 + L/250 µm | as Halo |
| Control / design / drive | CNC / bridge / belt | CNC / bridge / belt |
| Scale resolution | 0.1 µm | 0.1 µm |
| Optimal / operating temperature** | 18–22 °C / 5–45 °C | 18–22 °C / 5–45 °C |
| Table / load capacity | granite / 1000 kg | granite / 1000 kg |
| Max. speed / acceleration | 1000 mm/s / 1000 mm/s² | 1000 mm/s / 1000 mm/s² |
| Compressed air | 100 l/min, 7 bar | 100 l/min, 7 bar |
* Maximum permissible error MPEE within the optimal temperature range. ** Installation conditions: temperature variation <1 °C/h and <2 °C/24 h, gradient <1 °C/m. L – measured length, mm.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
