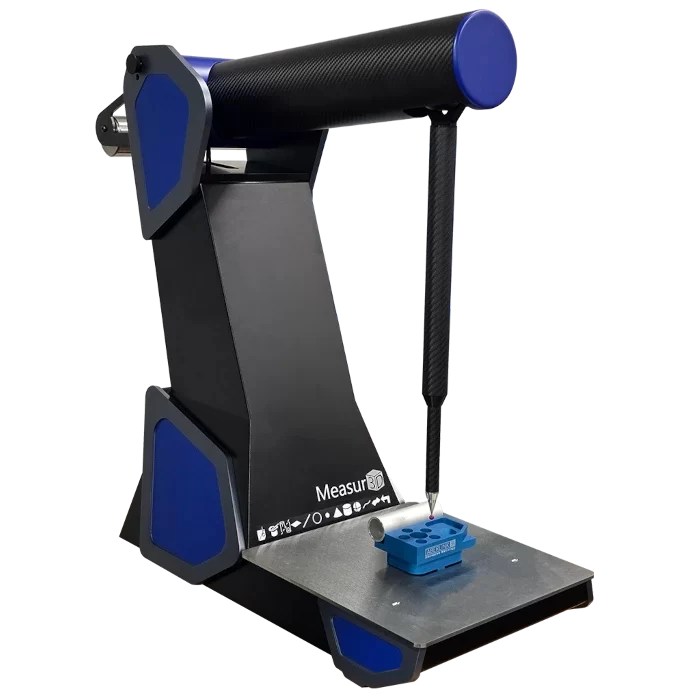

Aberlink Measur3D – portable manual coordinate measuring machine for the shop floor
Applications
For inspecting parts on the shop floor, next to the machine tools – after every operation. The Measur3D is a manual CMM with three rotary axes: compact and portable, it gives fast feedback on machining, so tool corrections can be made before final inspection and scrap can be reduced. Only a single-phase power supply is needed; compressed air is not required. Once the part has been measured in touch-trigger or continuous scanning mode, the relevant features are recognised and the dimensions are displayed automatically. Carbon fibre in the structure maintains accuracy when the air temperature changes.
Key features
- Compact, portable design for the shop floor
- Standard 3 A power supply, no compressed air
- Rugged manual CMM for harsh shop-floor conditions
- Intuitive Aberlink software that can be learned in one day
- Continuous scanning for size and form analysis
- Volumetric accuracy down to 5 µm throughout the measuring volume, 40 nm resolution encoders
Technical data
| Parameter | Measur3D |
|---|---|
| Axis travel (X / Y / Z)* | 280 / 280 / 150 mm |
| Overall dimensions (X / Y / Z) | 335 / 830 / 725 mm |
| Control | manual |
| Volumetric accuracy | 5.0 + L/1000 µm |
| Scale resolution | 1.15 µrad |
| Optimum / operating temperature | 18–22 °C / 5–45 °C |
| Compressed air | not required |
* The smallest measuring range is given, as the usable volume is not cubic. L – measured length, mm.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: trimos.com
