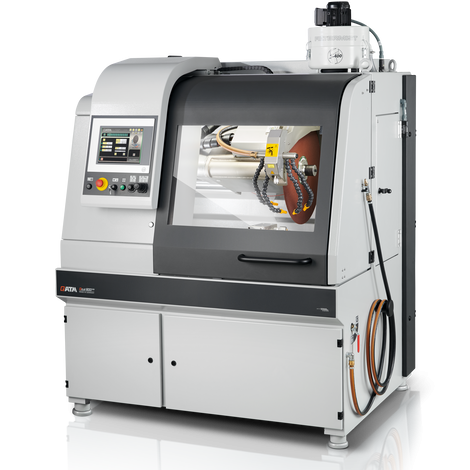

QATM Qcut 600 BOT – 5-axis cutting robot
Applications
For series production control where several specimens have to be cut from one part in different positions and at different angles (e.g. welded assemblies, gearbox housings, castings). One clamping – the entire cutting program, without operator intervention.
Key features
- Five axes (X, Y, Z, B 200°, C 360°) – complex cuts without re-clamping the part; a 4-axis version (B 360°) is available.
- Automatic wheel diameter measurement, cutting parameter adjustment and cut detection.
- MPP – positioning of several parts on a Ø600 mm round table and cutting them in one sequence.
- Teach-in function, 12.1” display, two joysticks, mobile control panel.
- 15 kW water-cooled drive, central lubrication, integrable recirculation cooling.
Models
| Model | Wheel Ø | Max cutting depth | Drive | Axes |
|---|---|---|---|---|
| Qcut 600 BOT (4-axis) | up to 610 mm | 244 mm | 15 kW S1 | X 550 / Y 360 / Z 550 mm + B 360° |
| Qcut 600 BOT (5-axis) | up to 610 mm | 244 mm | 15 kW S1 | X 550 / Y 360 / Z 550 mm + B 200° + C 360° |
| Brillant 3D / Qcut 430 BOT (previous) | up to 432 mm | Ø190 mm | 15 kW S1 | X 420 / Y 280 / Z 200 mm + D ±90° + E ±100° |
Technical data
- Accuracy ±0.1 mm / ±0.1°; speed 1000–2400 min⁻¹; flange Ø32/40 mm.
- Table Ø600 mm stainless steel, T-slots 12 mm, load up to 150 kg.
- Connected load 30 kVA.
- Dimensions (W×H×D) 1640×2200×1480 mm; weight ~1600 kg.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com
