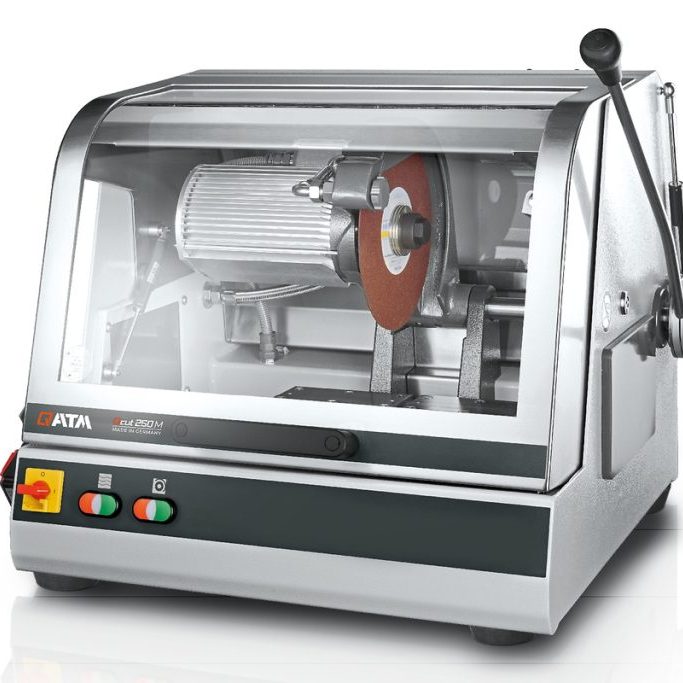

QATM Qcut 250 M / 250 A / 350 A, Brillant 230 – benchtop abrasive cut-off machines
Applications
A universal choice for everyday laboratory work – cutting steel, cast iron and non-ferrous metal parts for quality control, heat treatment and foundry laboratories. The manual Qcut 250 M and Brillant 230 suit low throughput; the automatic Qcut 250 A / 350 A are for serial, repeatable cuts.
Key features
- Four power and size levels on one design platform – from the 3 kW manual to the 5.5 kW automatic model.
- Automatic models – feed controlled by cutting force, pulse cutting for hard materials, MPP (cutting several samples in one sequence).
- 10.1” colour touchscreen and joystick, program memory, laser positioning.
- Side openings for long parts, large stainless steel T-slot table, LED chamber lighting.
- Door interlock – the chamber can only be opened once the wheel has stopped.
- Compatible with the complete QATM clamping tool system.
Models
| Model | Wheel Ø | Max sample | Drive | Control |
|---|---|---|---|---|
| Qcut 250 M (Brillant 200) | up to 250 mm | Ø55 mm / Ø90 mm (up to 25 mm length) | 3 kW S6 40 % | manual, Y 145 mm |
| Brillant 230 | up to 300 mm | Ø110 mm | 4 kW S1 | manual, Y 125 mm, Z in 0.1 mm steps |
| Qcut 250 A (Brillant 240) | up to 254 mm | Ø95 mm | 3 kW S1 / 4 kW S3 | X autom. 225 mm, Y manual 170 mm, Z autom. 120 mm (opt.) |
| Qcut 350 A (Brillant 250) | up to 356 mm | Ø135 mm | 4 kW S1 / 5.5 kW S3 | X 260 / Y 175 / Z 140 mm – automatic |
Technical data
- Wheel flange Ø32 mm (all models); T-slot 12 mm.
- Table: 350×288 mm (250 M); 380×250 mm (B230); 380×270 mm (250 A); 500×300 mm (350 A).
- Connected load: 4.5 / 6 / 5.5 / 9.5 kVA.
- Dimensions (W×H×D): 810×735×650 mm (250 M); 830×640×670 mm (B230); 925×676×756 mm (250 A); 1015×760×810 mm (350 A).
- Weight: ~75 / ~130 / ~130 / ~200 kg.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
