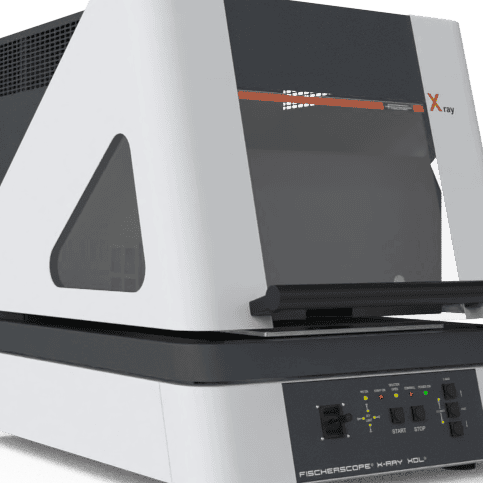

Helmut Fischer FISCHERSCOPE X-RAY XDL / XDLM – serial inspection of electroplated coatings
Applications
For the electroplating, aviation and sanitary fittings industries – for quality control of mass-produced parts, incoming goods inspection and production monitoring. The measuring direction from above makes it possible to automate serial measurements. The XDLM with a microfocus tube is designed for small parts, light metals, hard coatings and thin electroplated layers.
Key features
- Robust design for mass-produced parts; hood with C-shaped slot
- Measuring distance set by the patented DCM method
- Proportional counter detector with the largest measuring window on the market
- Integrated video microscope with zoom and crosshairs; laser pointer on models with XY stage
- From a flat sample support to a programmable XY stage
- XDLM: 4 interchangeable apertures and 3 interchangeable filters, spot approx. Ø 0.1 mm
Models
XDL 230, XDL 240 (standard tube, fixed apertures and filters); XDLM 237 (microfocus tube); XDLM-PCB (PCB version); X-RAY MODULAR CHAMBER (integration of XDL/XDLM/XDAL into a 1 m³ or 1.5 m³ chamber for large products)
Technical data
- Detector: proportional counter
- X-ray tube: XDL – standard; XDLM – microfocus
- Sample height: up to 140 mm
- Smallest measuring spot: XDL approx. Ø 0.2 mm; XDLM approx. Ø 0.1 mm
- Apertures: XDL fixed; XDLM 4 interchangeable
- Filters: XDL fixed; XDLM 3 interchangeable
- Software: WinFTM
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: helmut-fischer.com, helmut-fischer.com
