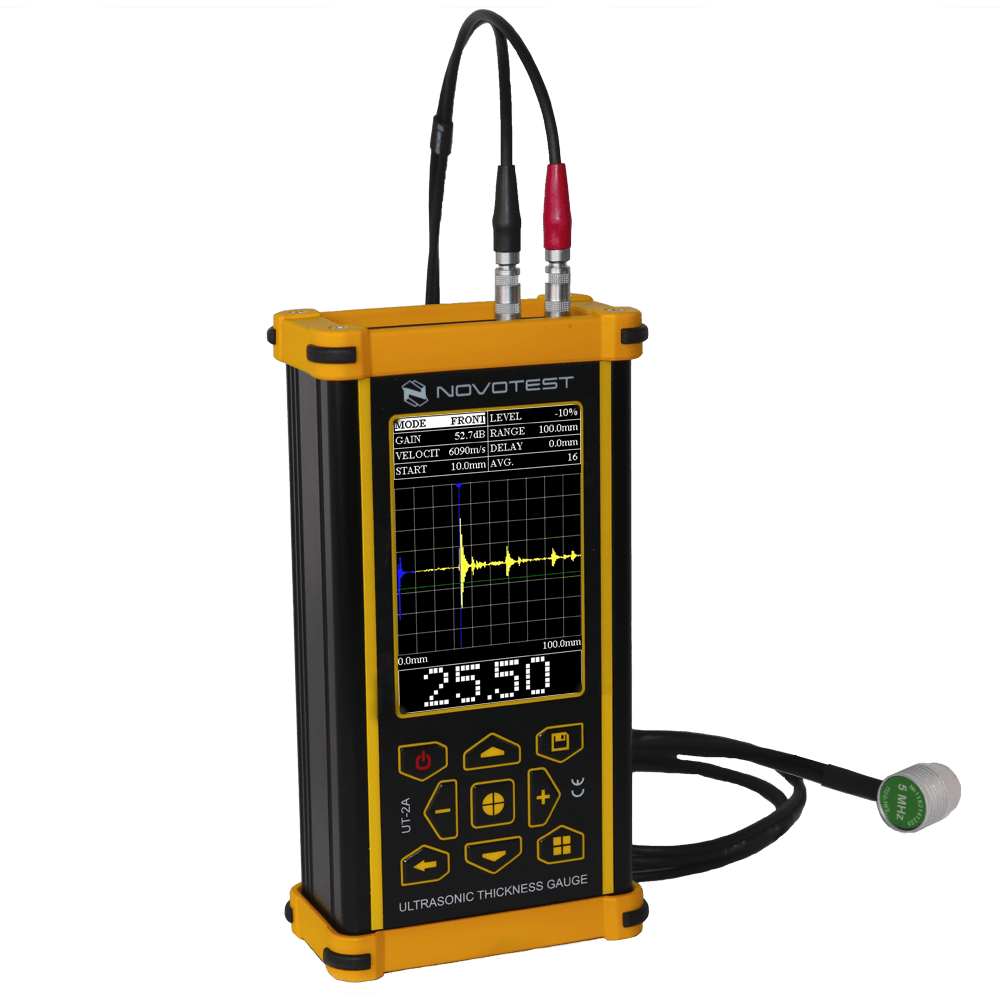

NOVOTEST UT-2A – thickness gauge with A-Scan
Applications
For NDT specialists who need to see the signal (A-Scan) and control the gates when measuring corroded, multilayer or complex objects.
Key features
- A-Scan, B-Scan, digital, Control and manual modes
- Echo (with adjustable gates), Echo-Echo, Peak-Peak methods, zero-crossing
- 3.5″ colour 480 × 320 display
- Li-ion battery ≥10 h (up to 20 h on request)
Models
UT-2A
Technical data
- Measuring range: 0.4–1500 mm depending on the probe
- Resolution: 0.01 mm
- Velocity range: 700–17000 m/s
- Display: 3.5″ 480 × 320 colour
- Operating temperature: -20…+40 °C
- Dimensions / weight: 165 × 90 × 50 mm / ≤0.5 kg
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: novotest.biz
